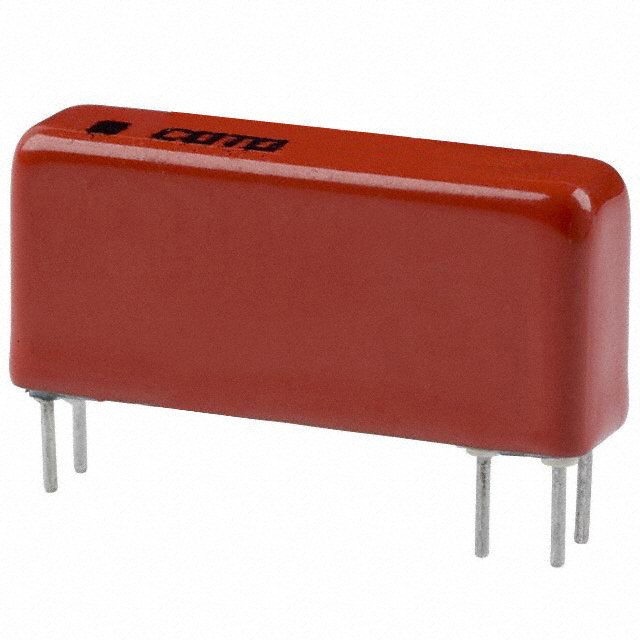

2341-05-010

Active

Coto Technology

RELAY REED SPDT 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPDT 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Switching Voltage	Coil Resistance	Release Time	Coil Current	Coil Voltage	Termination Style	Mounting Type	Coil Type	Operate Time	Contact Rating (Current)	Seal Rating	Must Release Voltage	Must Operate Voltage	Features
Coto Technology 2341-12-010	85 °C	-20 C	SPDT (1 Form C)	200 VDC 200 VAC	1 kOhms	0.5 ms	12 mA	12 VDC	PC Pin	Through Hole	Non Latching	500 µs	0.5 A	Sealed - Hermetically	1 VDC	9 VDC
Coto Technology 2341-05-010	85 °C	-20 C	SPDT (1 Form C)	200 VDC 200 VAC	230 Ohms	0.5 ms	21.7 mA	5 VDC	PC Pin	Through Hole	Non Latching	500 µs	0.5 A	Sealed - Hermetically	0.4 VDC	3.8 VDC
Coto Technology 2341-12-000	85 °C	-20 C	SPDT (1 Form C)	200 VDC 200 VAC	1 kOhms	0.5 ms	12 mA	12 VDC	PC Pin	Through Hole	Non Latching	500 µs	0.5 A	Sealed - Hermetically	1 VDC	9 VDC
Coto Technology 2341-05-000	85 °C	-20 C	SPDT (1 Form C)	200 VDC 200 VAC	230 Ohms	0.5 ms	21.7 mA	5 VDC	PC Pin	Through Hole	Non Latching	500 µs	0.5 A	Sealed - Hermetically	0.4 VDC	3.8 VDC
Coto Technology 2341-12-020	85 °C	-20 C	SPDT (1 Form C)	200 VDC 200 VAC	1 kOhms	0.5 ms	12 mA	12 VDC	PC Pin	Through Hole	Non Latching	500 µs	0.5 A		1 VDC	9 VDC	Sealed - Hermetically

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPDT 500MA 5V
