XCL225A0K1H2
ObsoleteTorex Semiconductor Ltd
DC DC CONVERTER 1-15V
Deep-Dive with AI
Search across all available documentation for this part.
XCL225A0K1H2
ObsoleteTorex Semiconductor Ltd
DC DC CONVERTER 1-15V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCL225A0K1H2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Features | OTP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-PowerLFDFN Module |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 0.07 " |
| Size / Dimension [z] | 1.7 mm |

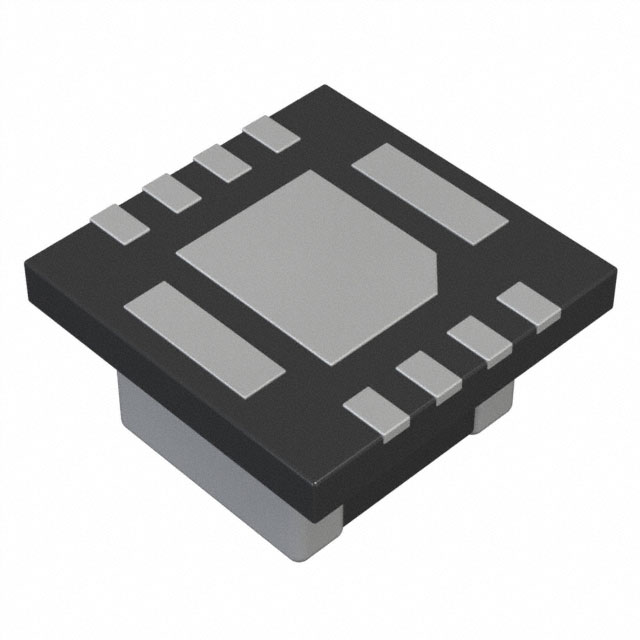

| Supplier Device Package | DFN3030-10B |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 15 V |
| Voltage - Output 1 [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XCL225 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 15V 500mA 3V - 18V Input
Documents
Technical documentation and resources
No documents available
