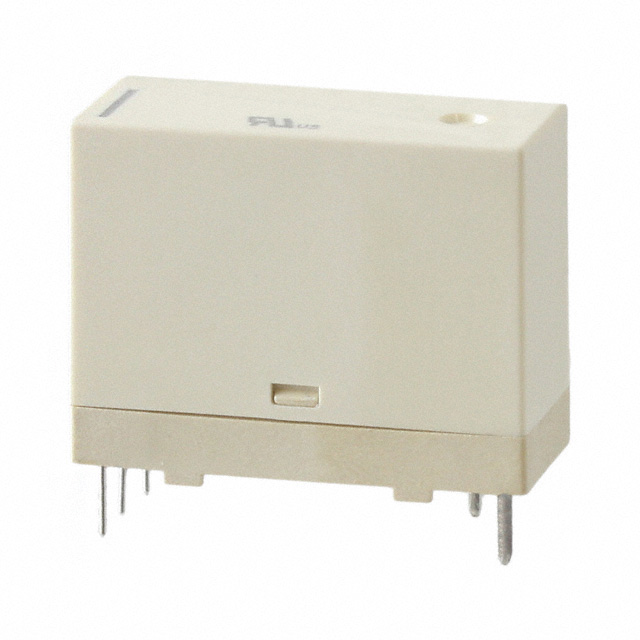

ADW1112W

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 8A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 8A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Insulation	Approval Agency	Release Time	Switching Voltage	Must Operate Voltage	Coil Current	Coil Resistance	Contact Form	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Material	Termination Style	Features	Mounting Type	Operate Time	Load - Max Switching	Seal Rating	Coil Voltage	Coil Type	Switching Voltage [Max]
Panasonic Electric Works ADW1112TW	Class F	CQC cURus VDE	15 ms	250 VAC	9.6 VDC	16.7 mA	720 Ohms	SPST-NO (1 Form A)	General Purpose	85 °C	-40 °C	8 A	Silver Tin Oxide (AgSnO)	PC Pin	IEC Compliant	Through Hole	15 ms	2000 VA	Sealed - Flux Protection	12 VDC	Latching Single Coil
Panasonic Electric Works ADW1112W	Class F	CQC cURus VDE	15 ms	250 VAC	9.6 VDC	16.7 mA	720 Ohms	SPST-NO (1 Form A)	General Purpose	85 °C	-40 °C	8 A	Silver Tin Oxide (AgSnO)	PC Pin		Through Hole	15 ms	2000 VA	Sealed - Flux Protection	12 VDC	Latching Single Coil
Panasonic Electric Works ADW1112HTW	Class F	CQC cURus VDE	15 ms		9.6 VDC	16.7 mA	720 Ohms	SPST-NO (1 Form A)	General Purpose	85 °C	-40 °C	16 A	Silver Tin Oxide (AgSnO)	PC Pin	IEC Compliant	Through Hole	15 ms	4432 VA	Sealed - Flux Protection	12 VDC	Latching Single Coil	277 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
