SM220UF1
ActiveSynapse Wireless
RF TXRX MOD CHIP + U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM220UF1
ActiveSynapse Wireless
RF TXRX MOD CHIP + U.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM220UF1 |
|---|---|
| Antenna Type | Chip, U.FL, Integrated |
| Current - Receiving [Max] | 22 mA |
| Current - Receiving [Min] | 7.8 mA |
| Current - Transmitting [Max] | 150 mA |
| Current - Transmitting [Min] | 55 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 128 kB, 4 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-SMD Module |
| Power - Output | 20 dBm |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | I2C, JTAG, UART, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 39.29 | |
| 10 | $ 36.27 | |||
| 25 | $ 33.25 | |||
| 100 | $ 30.73 | |||
| 250 | $ 29.22 | |||
| Digi-Reel® | 1 | $ 39.29 | ||
| 10 | $ 36.27 | |||
| 25 | $ 33.25 | |||
| 100 | $ 30.73 | |||
| 250 | $ 29.22 | |||
| Tape & Reel (TR) | 500 | $ 27.20 | ||
Description
General part information
SM220 Series

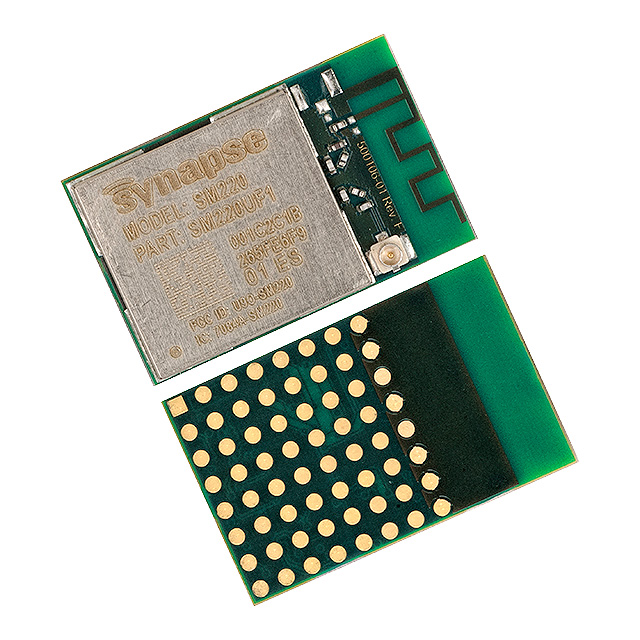

802.15.4 Transceiver Module 2.4GHz Integrated, Chip + U.FL Surface Mount
Documents
Technical documentation and resources
