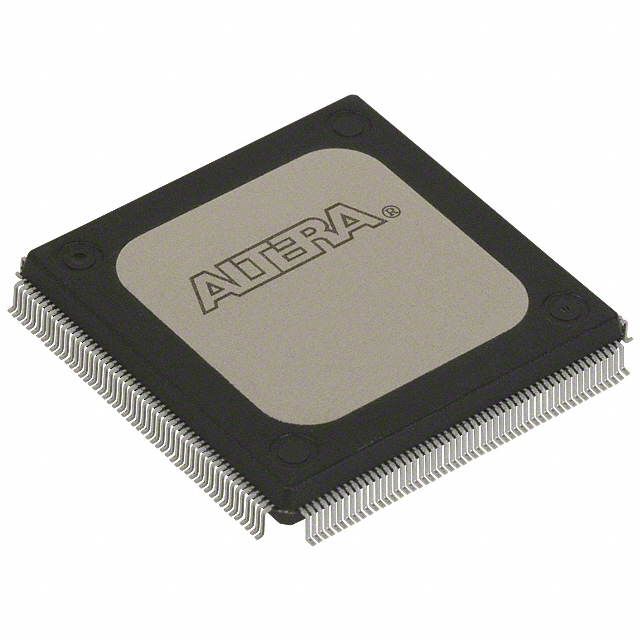

EPM9480RC208-20

Obsolete

Altera

IC CPLD 480MC 20NS 208RQFP

Search across all available documentation for this part.

Obsolete

Altera

IC CPLD 480MC 20NS 208RQFP

Technical Specifications

Parameters and characteristics for this part

Specification	EPM9480RC208-20

Delay Time tpd(1) Max [Max]	20 ns
Mounting Type	Surface Mount
Number of Gates	10000
Number of I/O	146
Number of Logic Elements/Blocks	30
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	208-BFQFP Exposed Pad
Programmable Type	In System Programmable
Supplier Device Package	208-RQFP (28x28)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Mounting Type	Package / Case	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of I/O	Number of Gates	Delay Time tpd(1) Max [Max]	Programmable Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Logic Elements/Blocks	Supplier Device Package
Altera EPM9480RC208-20	Surface Mount	208-BFQFP Exposed Pad	4.75 V	5.25 V	146	10000	20 ns	In System Programmable	70 °C	0 °C	30	208-RQFP (28x28)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 480MC 20NS 208RQFP
