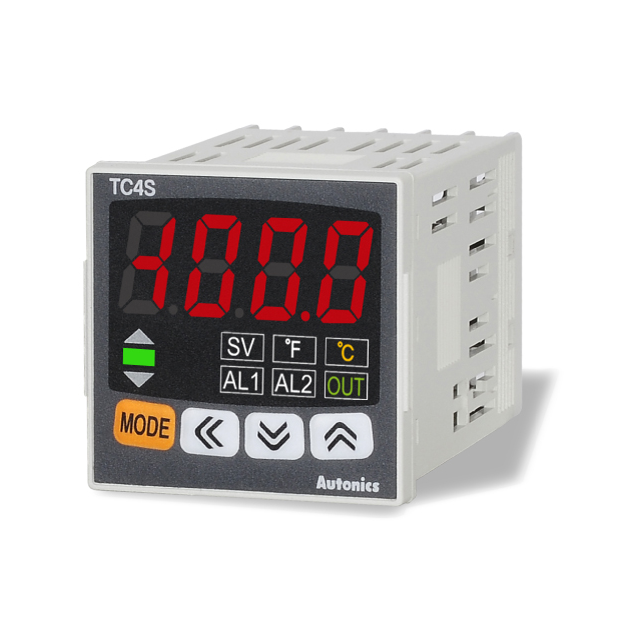

TC4S-N4N

Active

AUTONICS

TEMPERATURE CONTROLLER, PID, DIN 48X48, NO ALARM, INDICATOR ONLY, 100 TO 240 VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

TC4S-N4N

Active

AUTONICS

TEMPERATURE CONTROLLER, PID, DIN 48X48, NO ALARM, INDICATOR ONLY, 100 TO 240 VAC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC4S-N4N

Control Method	On/Off, Proportional (PID)
Display Characters - Height [z]	0.59 in
Display Characters - Height [z]	15 mm
Display Type	LED - Red Characters
Input Range [Max]	2192 °F
Input Range [Min]	-58 °F
Number of Characters Per Row	4
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Temperature Controller (RTD, Type J, K, L)
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

TC4S Series

Part	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Range [Min]	Input Range [Max]	Display Type	Control Method	Output Type
AUTONICS TC4S-N4N	Temperature Controller (RTD Type J K L)	45 mm	45 mm	Screw Terminal	0.59 in	15 mm	4	100 VAC	240 VAC	-58 °F	2192 °F	LED - Red Characters	On/Off Proportional (PID)
AUTONICS TC4S-N4R	Temperature Controller (RTD Type J K L)	45 mm	45 mm	Screw Terminal	0.59 in	15 mm	4	100 VAC	240 VAC	-58 °F	2192 °F	LED - Red Characters	On/Off Proportional (PID)	Relay Solid State
AUTONICS TC4S-24R	Temperature Controller (RTD Type J K L)	45 mm	45 mm	Screw Terminal	0.59 in	15 mm	4	100 VAC	240 VAC	-58 °F	2192 °F	LED - Red Characters	On/Off Proportional (PID)	Relay Solid State
AUTONICS TC4SP-14R	Temperature Controller (RTD Type J K L)	45 mm	45 mm	Screw Terminal	0.59 in	15 mm	4	100 VAC	240 VAC	-58 °F	2192 °F	LED - Red Characters	On/Off Proportional (PID)	Relay Solid State
AUTONICS TC4S-14R	Temperature Controller (RTD Type J K L)	45 mm	45 mm	Screw Terminal	0.59 in	15 mm	4	100 VAC	240 VAC	-58 °F	2192 °F	LED - Red Characters	On/Off Proportional (PID)	Relay Solid State

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 81.00
Newark	Each	1	$ 81.00

Description

General part information

TC4S Series

The TC4S-N4N from Autonics is a 4-digit single display economical PID Temperature Controller. The TC series is one of the most temperature controlling solution with essential functions and improved performance
