MVU10-10RX

Active

3M (TC)

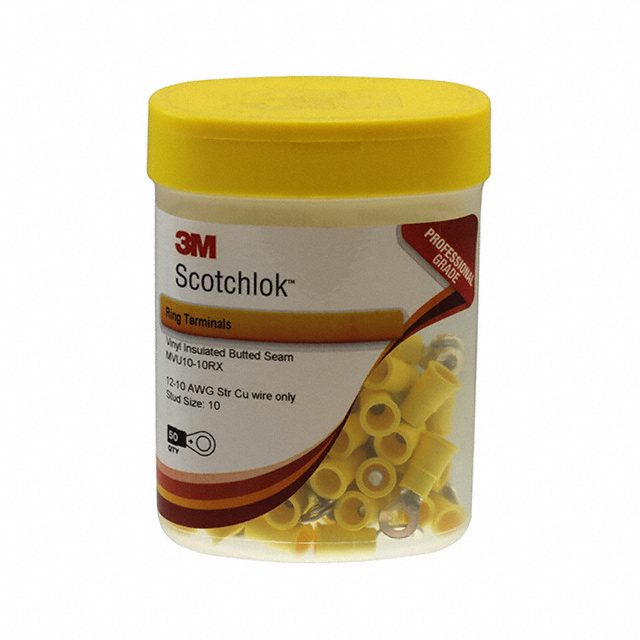

3M SCOTCHLOK RING VINYL INSULATED, 50/BOTTLE, MVU10-10RX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMVU10-xR/SK Selection Guide Datasheet

MVU10-10RX

Active

3M (TC)

3M SCOTCHLOK RING VINYL INSULATED, 50/BOTTLE, MVU10-10RX

Deep-Dive with AI

DocumentsMVU10-xR/SK Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MVU10-10RX

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.04 in
Thickness	1.02 mm
Width - Outer Edges [x]	9.65 mm
Width - Outer Edges [x]	0.38 "
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

MVU10 Series

Part	Number of Wire Entries	Color	Insulation	Termination	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter	Contact Material	Thickness	Thickness	Mounting Type	Material - Insulation	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Length - Overall [x]	Length - Overall	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Length - Termination	Length - Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Number of Wire Entries	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M (TC) MVU10PCK	Varies by Wire Size	Yellow	Fully Insulated	Crimp	Inline Individual Openings (Parallel)	12 AWG	10 AWG
3M (TC) MVU10-10RX		Yellow	Insulated	Crimp	Circular	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP	0.04 in	1.02 mm	Free Hanging (In-Line)	Vinyl	10 Stud	9.65 mm	0.38 "	Tin	1.03 in	26.16 mm
3M (TC) MVU10-38RX-BOTTLE		Yellow	Insulated	Crimp	Circular	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP	0.04 in	1.02 mm	Free Hanging (In-Line)	Vinyl				Tin	1.26 in		32 mm	3/8 Stud	0.54 in	13.72 mm
3M (TC) MVU10-10FLK		Yellow	Insulated	Crimp	Snap Spring	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP			Free Hanging (In-Line)	Vinyl	10 Stud			Tin	1.03 in	26.16 mm			0.32 in	8.13 mm	Butted Seam	13.97 mm	0.55 in	7.11 mm	0.28 in
3M (TC) MVU10-14R/SK		Yellow	Insulated	Crimp	Circular	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP	0.04 in	1.02 mm	Free Hanging (In-Line)	Vinyl	0.25 Stud			Tin	1.26 in		32 mm		0.53 in							13.46 mm
3M (TC) MVU10BCX		Yellow	Fully Insulated	Crimp	Butt Splice Individual Openings Inline	12 AWG	10 AWG																								2
3M (TC) MVU10BCK		Yellow	Fully Insulated	Crimp	Butt Splice Individual Openings Inline	12 AWG	10 AWG																								2
3M (TC) MVU10-4R/SK		Yellow	Insulated	Crimp	Circular	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP	0.04 in	1.02 mm	Free Hanging (In-Line)	Vinyl	4 Stud			Tin	0.98 in		24.89 mm		0.28 in	7.11 mm
3M (TC) MVU10-14R/SX-BOTTLE		Yellow	Insulated	Crimp	Circular	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP	0.04 in	1.02 mm	Free Hanging (In-Line)	Vinyl	0.25 Stud			Tin	1.26 in		32 mm		0.53 in							13.46 mm
3M (TC) MVU10-14FLK		Yellow	Insulated	Crimp	Snap Spring	12 AWG	10 AWG	0.25 "	6.35 mm	Copper ETP			Free Hanging (In-Line)	Vinyl	0.25 Stud			Tin	1.24 in		31.5 mm		0.43 "	10.92 mm	Butted Seam	13.97 mm	0.55 in					0.44 in	11.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.23
		10	$ 23.85
		25	$ 22.82
		50	$ 22.08
		100	$ 21.35
		250	$ 20.17
		500	$ 19.58
Newark	Each	1	$ 0.89
		100	$ 0.69
		250	$ 0.62
		500	$ 0.56
		1000	$ 0.52

Description

General part information

MVU10 Series

Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

MVU10-xR/SK Selection Guide

Datasheet
