0039320034

Obsolete

Molex

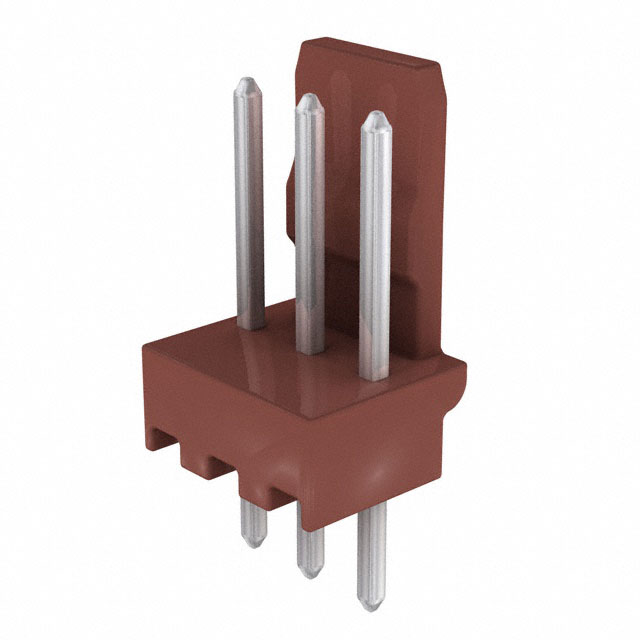

CONN HEADER VERT 3POS 2.5MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 3POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	0039320034

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Red
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Style	Contact Shape	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Material	Fastening Type	Connector Type	Insulation Color	Number of Positions Loaded	Mounting Type	Number of Rows	Contact Type
Molex 0039320034	2.5 mm	0.098 in	11.7 mm	0.461 "	UL94 V-0	7.49 mm	0.295 in	Shrouded - 1 Wall	Solder	0.134 in	3.4 mm	Board to Cable/Wire	Square	Tin	14.2 mm	0.559 in	Polyamide (PA66) Nylon 6/6	Brass	Friction Lock	Header	Red	All	Through Hole	1	Male Pin
