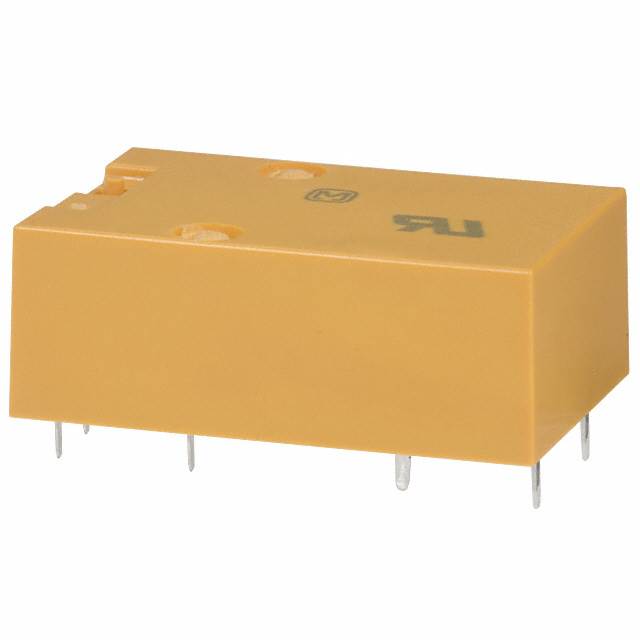

NF2EB-12V-A
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 2A 12V
Deep-Dive with AI
Search across all available documentation for this part.
NF2EB-12V-A
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 2A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NF2EB-12V-A |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 36.7 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 220 VDC, 220 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NF2EB Series
General Purpose Relay DPDT (2 Form C) Through Hole
