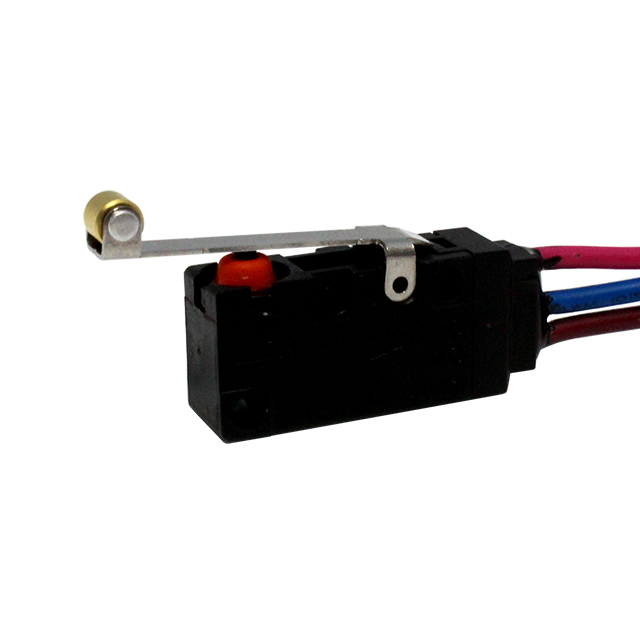

VM3SCQF1803L01

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

VM3SCQF1803L01

Active

CIT Relay and Switch

SWITCH LIMIT SPDT 10A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VM3SCQF1803L01

Actuator Type	Roller, Lever
Circuit	SPDT
Differential Travel	0.05 in
Differential Travel	1.3 mm
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	140 gf
Operating Position	0.807 in
Operating Position	20.5 mm
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.039 in
Overtravel	1 mm
Pretravel	0.1 in
Pretravel	2.5 mm
Release Force	50 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

VM3SC Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Differential Travel	Differential Travel	Operating Position	Operating Position	Overtravel	Overtravel	Mounting Type	Electrical Life	Circuit	Operating Force	Switch Function	Ingress Protection	Actuator Type	Pretravel	Pretravel	Mechanical Life	Voltage Rating - AC	Release Force	Operating Position	Overtravel
CIT Relay and Switch VM3SCGF1803L00	-40 °C	120 °C	36 VDC	Wire Leads	0.8 mm	0.031 "	0.581 "	14.75 mm	0.8 mm	0.031 in	Chassis Mount	50000 Cycles	SPDT	180 gf	On-Mom	IP67 - Dust Tight Waterproof	Round (Pin Plunger)	0.063 in	1.6 mm	1000000 Cycles	125 V
CIT Relay and Switch VM3SCGF3002L03	-40 °C	120 °C	36 VDC	Quick Connect - 0.187" (4.7mm)	1.5 mm	0.06 "		14.9 mm	1 mm	0.039 in	Chassis Mount	50000 Cycles	SPDT	180 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Straight	0.138 in	3.5 mm	1000000 Cycles	125 V	80 gf	0.587 in
CIT Relay and Switch VM3SCGF3002L06	-40 °C	120 °C	36 VDC	Quick Connect - 0.187" (4.7mm)	1 mm	0.04 in		20.3 mm	0.012 in		Chassis Mount	50000 Cycles	SPDT	380 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Roller	0.067 in	1.7 mm	1000000 Cycles	125 V	160 gf	0.799 in	0.3 mm
CIT Relay and Switch VM3SCQF3002L00	-40 °C	120 °C	36 VDC	Quick Connect - 0.187" (4.7mm)	0.8 mm	0.031 "	0.581 "	14.75 mm	0.6 mm	0.024 in	Chassis Mount	50000 Cycles	SPDT	320 gf	On-Mom	IP67 - Dust Tight Waterproof	Round (Pin Plunger)	0.08 in	2 mm	1000000 Cycles	125 V	250 gf
CIT Relay and Switch VM3SCQF1803L04	-40 °C	120 °C	36 VDC	Wire Leads	1 mm	0.04 in		15.3 mm	0.5 mm	0.02 in	Chassis Mount	50000 Cycles	SPDT	190 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Straight	0.071 in	1.8 mm	1000000 Cycles	125 V	80 gf	0.602 "
CIT Relay and Switch VM3SCGF3003L06	-40 °C	120 °C	36 VDC	Wire Leads	1 mm	0.04 in		20.3 mm	0.012 in		Chassis Mount	50000 Cycles	SPDT	380 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Roller	0.067 in	1.7 mm	1000000 Cycles	125 V	160 gf	0.799 in	0.3 mm
CIT Relay and Switch VM3SCQF1803L01	-40 °C	120 °C	36 VDC	Wire Leads	1.3 mm	0.05 in		20.5 mm	1 mm	0.039 in	Chassis Mount	50000 Cycles	SPDT	140 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Roller	0.1 in	2.5 mm	1000000 Cycles	125 V	50 gf	0.807 in
CIT Relay and Switch VM3SCGF1803L01	-40 °C	120 °C	36 VDC	Wire Leads	1.3 mm	0.05 in		20.5 mm	1 mm	0.039 in	Chassis Mount	50000 Cycles	SPDT	140 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Roller	0.1 in	2.5 mm	1000000 Cycles	125 V	50 gf	0.807 in
CIT Relay and Switch VM3SCGF3002L02	-40 °C	120 °C	36 VDC	Quick Connect - 0.187" (4.7mm)	1.5 mm	0.06 "		18.3 mm	0.6 mm	0.024 in	Chassis Mount	50000 Cycles	SPDT	200 gf	On-Mom	IP67 - Dust Tight Waterproof	Lever Simulated Roller	0.118 in	3 mm	1000000 Cycles	125 V	180 gf	0.72 in
CIT Relay and Switch VM3SCQF1803L00	-40 °C	120 °C	36 VDC	Wire Leads	0.8 mm	0.031 "	0.581 "	14.75 mm	0.8 mm	0.031 in	Chassis Mount	50000 Cycles	SPDT	180 gf	On-Mom	IP67 - Dust Tight Waterproof	Round (Pin Plunger)	0.063 in	1.6 mm	1000000 Cycles	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.44
		10	$ 6.99
		25	$ 6.49
		50	$ 6.13
		100	$ 5.79
		250	$ 5.38
		500	$ 5.08
		1000	$ 4.80

Description

General part information

VM3SC Series

Switch SPDT Chassis Mount
