09120123001

Active

HARTING Technology Group

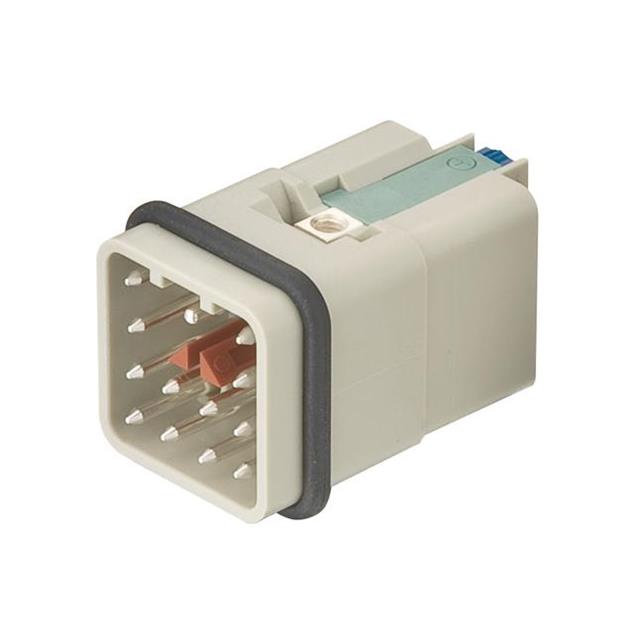

INSERT MALE 12POS CRIMP PUSH IN

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT MALE 12POS CRIMP PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	09120123001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Push In with Lock, Crimp
Voltage Rating	600 V

Part	Contact Type	Current Rating (Amps)	Material Flammability Rating	Housing Material	Termination Style	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Size	Gender	Number of Positions
HARTING Technology Group 09120123104	Han® D	10 A	UL94 V-0	Polycarbonate (PC)	Crimp	0 12	Ground	400 V	Insert without Contacts	125 °C	-40 °C	Gray	3 A	Female
HARTING Technology Group 09120123102	Han® DD	7.5 A	UL94 V-0	Polycarbonate (PC)	Solder			250 VDC	Insert without Contacts	125 °C	-40 °C	Gray		Female	12
HARTING Technology Group 09120123001	Han® D	10 A	UL94 V-0	Polycarbonate (PC)	Crimp Push In with Lock			600 V	Insert without Contacts	125 °C	-40 °C	Gray	3 A	Male	12
HARTING Technology Group 09120123002	Han® DD	7.5 A	UL94 V-0	Polycarbonate (PC)	Solder			250 VDC	Insert without Contacts	125 °C	-40 °C	Gray		Male	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 12 Position Crimp, Push In with Lock
