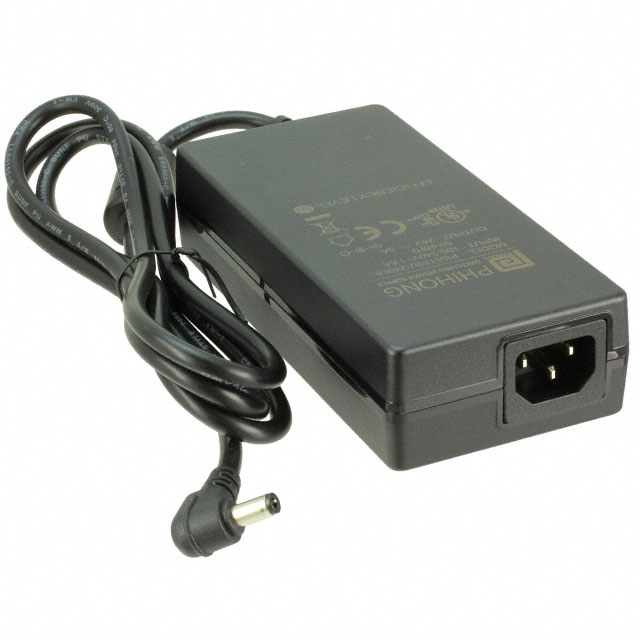

PSA120U-240L6
ActivePhihong USA
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSA120U-240L6
ActivePhihong USA
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA120U-240L6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus, GS |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector [custom] | 10 mm |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 120 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.98 " |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.87 " |
| Size / Dimension [z] | 37 mm |
| Size / Dimension [z] | 1.46 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.23 | |
| 10 | $ 42.07 | |||
| 25 | $ 40.39 | |||
| 50 | $ 39.80 | |||
Description
General part information
PSA120U Series
Desktop AC Adapters 120W 12V 10A C14 Level VI
