2UD605018FFTC

Active

Hammond Manufacturing

ELECTRICAL ENCLOSURE

Search across all available documentation for this part.

Active

Hammond Manufacturing

ELECTRICAL ENCLOSURE

Technical Specifications

Parameters and characteristics for this part

Specification	2UD605018FFTC

Color	Gray
Dimensions - Overall [x]	492.25 mm
Dimensions - Overall [x]	19.38 "
Dimensions - Overall [y]	1270 mm
Dimensions - Overall [y]	50 in
Dimensions - Overall [z]	60.13 in
Dimensions - Overall [z]	1527.3 mm
Dimensions - Panel [x]	17 "
Dimensions - Panel [x]	431.8 mm
Dimensions - Panel [y]	41.5 "
Dimensions - Panel [y]	1054.1 mm
Dimensions - Panel [z]	1501.9 mm
Dimensions - Panel [z]	59.13 "
Door	Steel
Material	Metal, Steel
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Style	Bottom, Enclosed, Sides, Front, Top
Type	Equipment Cabinet
Ventilation	Non-Vented
Weight	309.8 kg
Weight	683 lbs

Part	Ventilation	Material	Color	Style	Type	Door	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Panel [x]	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [y]	Dimensions - Panel [x]	Dimensions - Panel [z]	Weight	Weight	Shipping Info
Hammond Manufacturing 2UD605018FFTC	Non-Vented	Metal Steel	Gray	Bottom Enclosed Front Sides Top	Equipment Cabinet	Steel	1270 mm	60.13 in	50 in	492.25 mm	1527.3 mm	19.38 "	17 "	41.5 "	1501.9 mm	1054.1 mm	431.8 mm	59.13 "	309.8 kg	683 lbs	Drop shipped from the Manufacturer's Warehouse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4281.86

General part information

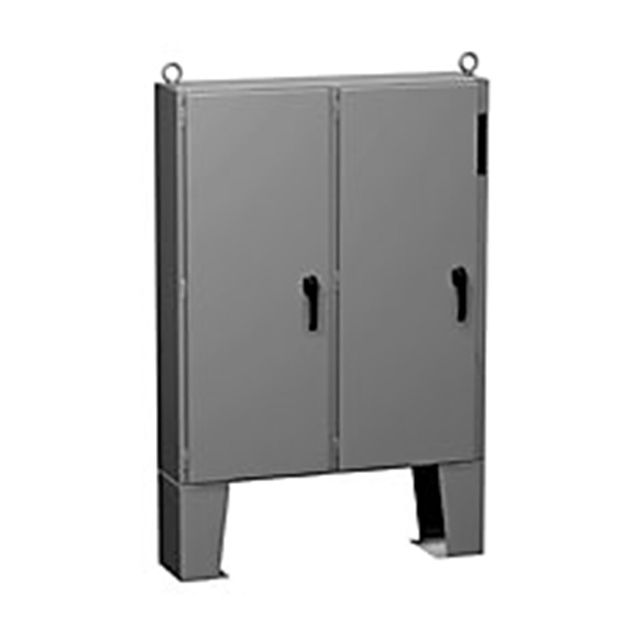

Metal, Steel Equipment Cabinet Enclosed, Bottom, Front, Sides, Top 19.380" L x 50.000" W x 60.130" H (492.25mm x 1270.00mm x 1527.30mm) Gray

Technical documentation and resources

No documents available
