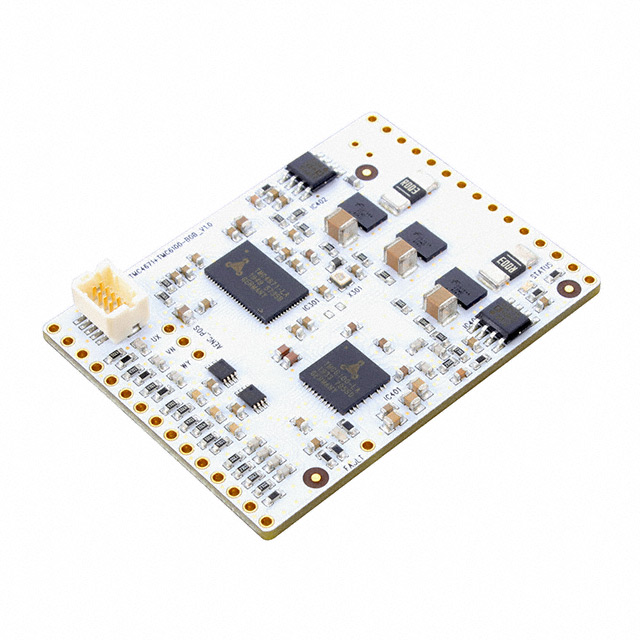

TMC4671+TMC6100-BOB

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC4671 TMC6100

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC4671 TMC6100

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Embedded	Function	Primary Attributes	Supplied Contents	Type	Utilized IC / Part	Secondary Attributes	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Technology	Motor Type - Stepper	Current - Output	Applications	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Motor Type - AC, DC	Mounting Type
Analog Devices Inc./Maxim Integrated TMC4671-LEV-REF	Board(s)	Yes MCU	Motor Controller/Driver	BLDC Servo	Board(s)	Power Management	TMC4671
Analog Devices Inc./Maxim Integrated TMC4671+TMC6100-BOB	Board(s)		Motor Controller/Driver	Servo Controller	Board(s)	Power Management	TMC4671 TMC6100	On-Board LEDs
Analog Devices Inc./Maxim Integrated TMC4671-LA			Controller - Commutation Direction Management						10.5	76-QFN	6.5	-40 °C	125 ¯C	SPI Step/Direction	Power MOSFET	Multiphase	4 mA	Servo	76-VFQFN Exposed Pad	3.45 V	3.15 V	Pre-Driver - High Side/Low Side	Brushless DC (BLDC) DC PMSM	Surface Mount
Analog Devices Inc./Maxim Integrated TMC4671-10A70V-EV-KIT	Board(s)		Motor Controller/Driver		Board(s)	Power Management	TMC4671	SPI/UART Interface(s)
Analog Devices Inc./Maxim Integrated TMC4671-2A24V-EV-KIT	Board(s)		Motor Controller/Driver		Board(s)	Power Management	TMC4671	SPI/UART Interface(s)
Analog Devices Inc./Maxim Integrated TMC4671+TMC6100-			Motor Controller/Driver	Servo Controller	Board(s)	Power Management	TMC4671 TMC6100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.43

General part information

TMC4671, TMC6100 Landungsbrücke, Startrampe Motor Controller/Driver Power Management Evaluation Board
