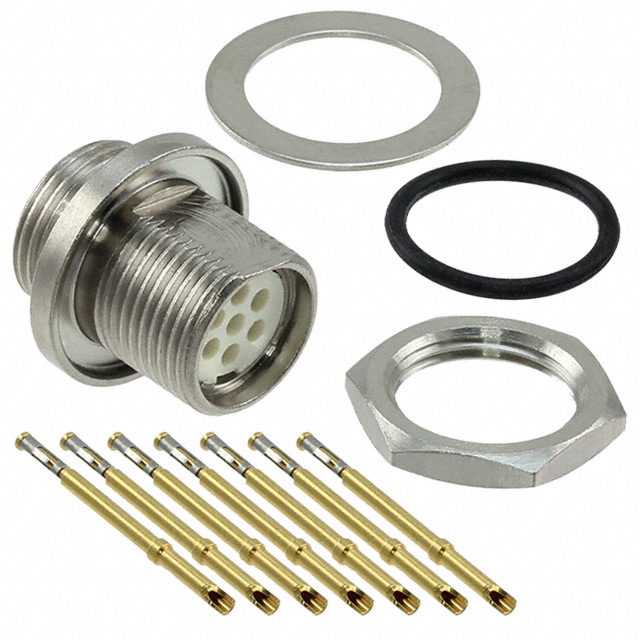

TS2P7F26

Active

Switchcraft Inc.

CONN CIRCULAR SKT 7 POS SOLDER CUP ST PANEL MOUNT 7 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR SKT 7 POS SOLDER CUP ST PANEL MOUNT 7 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P7F26

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	30 VAC

Part	Applications	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Number of Positions	Insert Material	Mounting Type	Mounting Feature	Contact Material	Primary Material	Shell Material	Color	Termination	Ingress Protection	Orientation	Voltage Rating	Connector Type	Contact Finish - Mating
Switchcraft Inc. TS2P7F26-BPE	Agriculture Audio General Medical Testing Equipment & Measurement	Shielded	135 °C	-40 °C	Electroless Nickel	7	Liquid Crystal Polymer (LCP)	Panel Mount Through Hole	Bulkhead - Front Side Nut	Copper Alloy	Metal	Copper Alloy	Silver	Solder	IP66 IP67 IP68	Keyed	30 VAC	Receptacle Female Sockets	Gold
Switchcraft Inc. TS2P7F26	Agriculture Audio General Medical Testing Equipment & Measurement	Shielded	135 °C	-40 °C	Electroless Nickel	7	Liquid Crystal Polymer (LCP)		Bulkhead - Rear Side Nut	Copper Alloy	Metal	Copper Alloy	Silver	Crimp Solder Cup	IP66 IP67 IP68	Keyed	30 VAC	Receptacle Female Sockets	Gold
Switchcraft Inc. TS2P7F26-BP	Agriculture Audio General Medical Testing Equipment & Measurement	Shielded	135 °C	-40 °C	Electroless Nickel	7	Liquid Crystal Polymer (LCP)	Panel Mount Through Hole	Bulkhead - Front Side Nut	Copper Alloy	Metal	Copper Alloy	Silver	Solder	IP66 IP67 IP68	Keyed	30 VAC	Receptacle Female Sockets	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.50
Digikey	Bulk	25	$ 22.95

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
