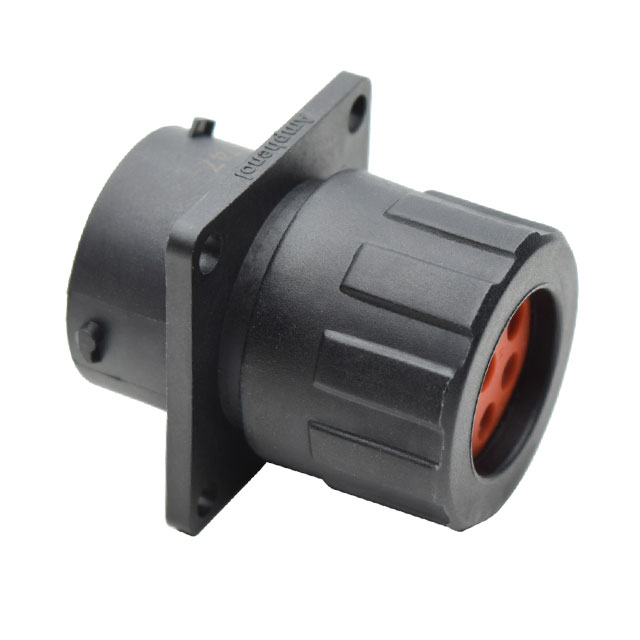

RTS014N8SHEC03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 8POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

RTS014N8SHEC03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 8POS PNL MT

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS014N8SHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	14-8
Shielding	Unshielded
Type	For Female Sockets

RTS014 Series

Part	Shielding	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Type	Contact Type	Note	Material Flammability Rating	Mounting Feature	Ingress Protection	Contact Shape	Contact Size	Insert Material	Orientation	Features	Connector Type	Housing Color	Includes	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Sine Systems Corp RTS014N8SHEC03	Unshielded	14-8	125 °C	-40 °C	Bayonet Lock	8	For Female Sockets	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	16	Thermoplastic	N	Backshell	Receptacle Housing	Black
Amphenol Sine Systems Corp RTS014N3S03	Unshielded	14-3	125 °C	-40 °C	Bayonet Lock		For Female Sockets	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	8	Thermoplastic	N		Receptacle Housing	Black	1 Connector 1 Gasket
Amphenol Sine Systems Corp RTS014N12SHEC03	Unshielded	14-12	125 °C	-40 °C	Bayonet Lock	12	For Female Sockets	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	16	Thermoplastic	N	Backshell	Receptacle Housing	Black
Amphenol Sine Systems Corp RTS014N4S03	Unshielded		125 °C	-40 °C	Bayonet Lock	4	For Female Sockets	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	2.5 mm	Thermoplastic	N		Receptacle Housing	Black	1 Connector 1 Gasket	4	14
Amphenol Sine Systems Corp RTS014N12P03	Unshielded	14-12	125 °C	-40 °C	Bayonet Lock	12	For Male Pins	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	16	Thermoplastic	N		Receptacle Housing	Black	1 Connector 1 Gasket
Amphenol Sine Systems Corp RTS014N12PHEC03	Unshielded	14-12	125 °C	-40 °C	Bayonet Lock	12	For Male Pins	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	16	Thermoplastic	N	Backshell	Receptacle Housing	Black
Amphenol Sine Systems Corp RTS014N12S03	Unshielded	14-12	125 °C	-40 °C	Bayonet Lock	12	For Female Sockets	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	16	Thermoplastic	N		Receptacle Housing	Black	1 Connector 1 Gasket
Amphenol Sine Systems Corp RTS014N3P03	Unshielded	14-3	125 °C	-40 °C	Bayonet Lock		For Male Pins	Crimp	Contacts Not Included	UL94 V-0	Flange	IP67 IP69K	Circular	8	Thermoplastic	N		Receptacle Housing	Black	1 Connector 1 Gasket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.91
		10	$ 7.62
		25	$ 6.89
		50	$ 6.56

Description

General part information

RTS014 Series

8 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
