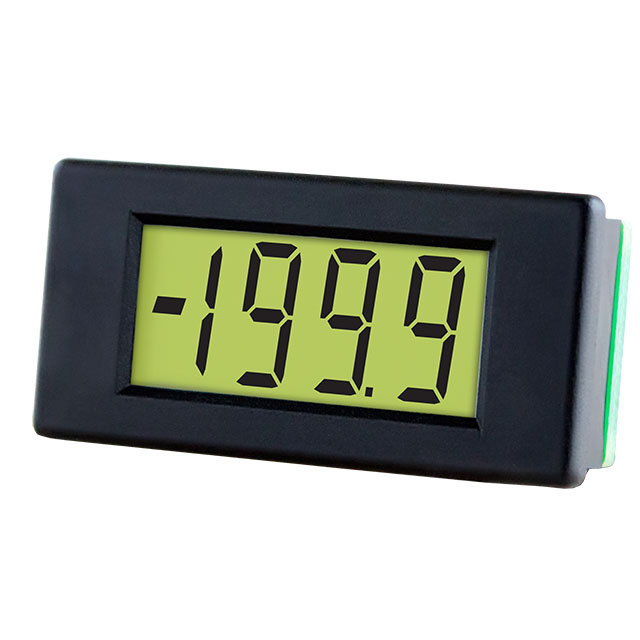

DPM 3AS-BL
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPM 3AS-BL
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM 3AS-BL |
|---|---|
| Display Characters - Height | 0.433 in |
| Display Characters - Height | 11 mm |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | -200 mV |
| Measuring Type | Voltage |
| Number of Characters Per Row | 3.5 |
| Panel Cutout Dimensions [x] | 38 mm |
| Panel Cutout Dimensions [y] | 18 mm |
| Termination Style | PC Pin |
| Type | Voltmeter |
| Voltage - Supply [Max] | 15 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 61.62 | |
| 10 | $ 60.99 | |||
Description
General part information
DPM 3AS Series
Voltmeter LCD - Black Characters, Green Backlight Display Panel Mount
