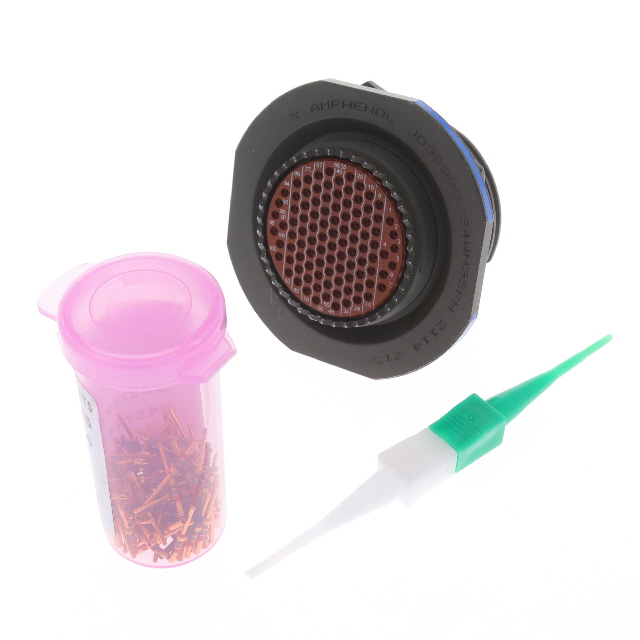

D38999/24WH35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 100POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WH35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 100POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WH35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	100
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	23
Shell Size, MIL	H
Shielding	Shielded
Termination	Crimp

D38999/24WH Series

Part	Contact Shape	Orientation	Grade	Shell Material	Type	Contact Size	Mounting Feature	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Note	Qualification	Contact Type	Shell Finish	Ingress Protection	Housing Color	Shell Size, MIL	Number of Positions	Shielding	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Color	Contact Material	Termination	Contact Finish - Mating
Amphenol Aerospace Operations D38999/24WH35HN-LC	Circular	N	Military	Aluminum	For Male Pins	22D	Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Receptacle Housing	Contacts Not Included	MIL-DTL-38999 Series III	Crimp	Cadmium	Environment Resistant	Olive Drab	H	100	Shielded
Amphenol Aerospace Operations D38999/24WH35HN		N	Military	Aluminum			Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Male Pins Receptacle		MIL-DTL-38999 Series III		Olive Drab Cadmium	Environment Resistant		H	100	Shielded	Aviation Marine Military	2.54 çm	100 çin	Metal	Olive Drab	Copper Alloy	Crimp	Gold
Amphenol Aerospace Operations D38999/24WH53SN		N	Military	Aluminum			Bulkhead - Front Side Nut	23	53	-65 ░C	347 °F	Receptacle Female Sockets		MIL-DTL-38999 Series III		Olive Drab Cadmium	Environment Resistant		H	53	Shielded	Aerospace Aviation Marine Military	1.27 µm	50 µin	Metal	Olive Drab	Copper Alloy	Crimp	Gold
Amphenol Aerospace Operations D38999/24WH35PN		N	Military	Aluminum			Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Male Pins Receptacle		MIL-DTL-38999 Series III		Olive Drab Cadmium	Environment Resistant		H	100	Shielded	Aerospace Aviation Marine Military	1.27 µm	50 µin	Metal	Olive Drab	Copper Alloy	Crimp	Gold
Amphenol Aerospace Operations D38999/24WH35JA-LC	Circular	A	Military	Aluminum	For Female Sockets	22D	Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Receptacle Housing	Contacts Not Included	MIL-DTL-38999 Series III	Crimp	Cadmium	Environment Resistant	Olive Drab	H	100	Shielded
Amphenol Aerospace Operations D38999/24WH35HA		A	Military	Aluminum			Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Male Pins Receptacle		MIL-DTL-38999 Series III		Olive Drab Cadmium	Environment Resistant		H	100	Shielded	Aviation Marine Military	2.54 çm	100 çin	Metal	Olive Drab	Copper Alloy	Crimp	Gold
Amphenol Aerospace Operations D38999/24WH35SA-LC	Circular	A	Military	Aluminum	For Female Sockets	22D	Bulkhead - Front Side Nut	23	35	-65 ░C	347 °F	Receptacle Housing	Contacts Not Included	MIL-DTL-38999 Series III	Crimp	Cadmium	Environment Resistant	Olive Drab	H	100	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 407.64
		1	$ 100.65
		10	$ 87.23
		10	$ 377.75
		25	$ 76.97
		25	$ 364.16
		50	$ 68.87
		100	$ 60.39

Description

General part information

D38999/24WH Series

100 Position Circular Connector Receptacle, Male Pins Crimp
