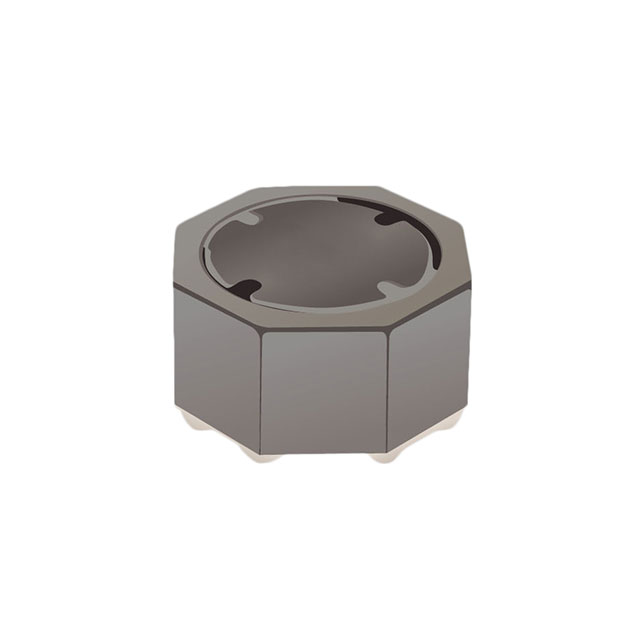

SRU8045A-6R2Y

Active

Bourns Inc.

IND8X8X4.5MM,6.2UH30%4.2A,SHDSMD /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND8X8X4.5MM,6.2UH30%4.2A,SHDSMD /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Inductance Frequency - Test	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Type	Tolerance	Ratings	Mounting Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Inductance	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]
Bourns Inc. SRU8045A-220Y	122 mOhm	2.52 MHz 18	2.25 A	100 kHz	Shielded	125 °C	-40 °C	2.15 A	Drum Core Wirewound	30 %	AEC-Q200	Surface Mount	Ferrite	0.189 "	4.8 mm	4-SMD	22 µH	12 MHz	0.315 in	8 mm	0.315 "	8 mm
Bourns Inc. SRU8045A-470Y	270 mOhm	2.52 MHz 12	1.45 A	100 kHz	Shielded	125 °C	-40 °C	1.4 A	Drum Core Wirewound	30 %	AEC-Q200	Surface Mount	Ferrite	0.189 "	4.8 mm	4-SMD	47 µH	6 MHz	0.315 in	8 mm	0.315 "	8 mm
Bourns Inc. SRU8045A-6R2Y		7.96 MHz 10	4.2 A	100 kHz	Shielded	125 °C	-40 °C	3.8 A	Drum Core Wirewound	30 %	AEC-Q200	Surface Mount	Ferrite	0.189 "	4.8 mm	4-SMD	6.2 µH	23 MHz	0.315 in	8 mm	0.315 "	8 mm	36 mOhm
Bourns Inc. SRU8045A-101Y		20 796 kHz	1 A	100 kHz	Shielded	125 °C	-40 °C	920 mA	Drum Core Wirewound	30 %	AEC-Q200	Surface Mount	Ferrite	0.189 "	4.8 mm	4-SMD	100 µH	3 MHz	0.315 in	8 mm	0.315 "	8 mm	500 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.18
		10	$ 1.00
	Digi-Reel®	1	$ 1.18
		10	$ 1.00
	Tape & Reel (TR)	1000	$ 0.56
Newark	Each (Supplied on Cut Tape)	500	$ 0.71

General part information

6.2 µH Shielded Drum Core, Wirewound Inductor 4.2 A 36mOhm Max 4-SMD
