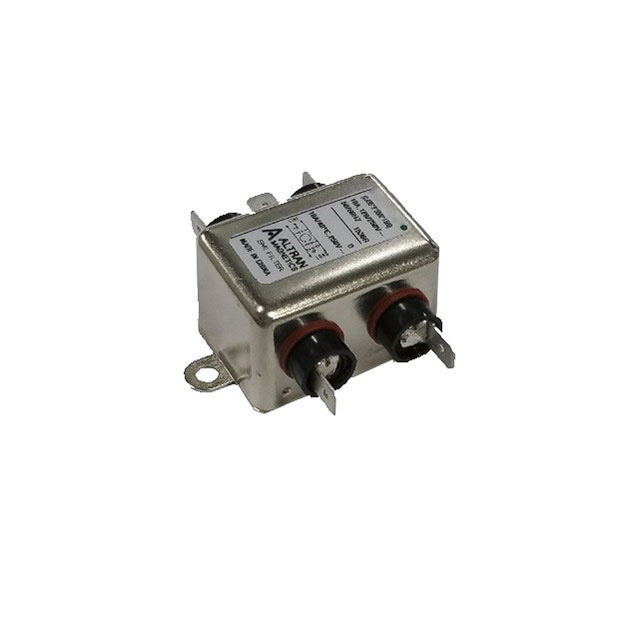

AMI-M11J-1-2-B-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 2A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-M11J-1-2-B-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 2A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMI-M11J-1-2-B-1

Applications	General Purpose
Configuration	Single Stage
Current	2 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	539 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V

AMI-M11J Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Filter Type	Configuration	Mounting Type	Applications	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Termination Style
Altran Magnetics, LLC AMI-M11J-3-3-B-2	-10 °C	40 °C	1.76 mH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	3 A	Wire Leads
Altran Magnetics, LLC AMI-M11J-3-3-B-1	-10 °C	40 °C	1.76 mH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	3 A	Wire Leads
Altran Magnetics, LLC AMI-M11J-3-1-B-1	-10 °C	40 °C	1.86 mH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	1 A	Wire Leads
Altran Magnetics, LLC AMI-M11J-3-10-B-1	-10 °C	40 °C	495 µH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	10 A	Wire Leads
Altran Magnetics, LLC AMI-M11J-1-20-B-1	-10 °C	40 °C	440 µH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	20 A	Quick Connect
Altran Magnetics, LLC AMI-M11J-1-2-B-1	-10 °C	40 °C	539 µH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	2 A	Quick Connect
Altran Magnetics, LLC AMI-M11J-1-2-B-2	-10 °C	40 °C	539 µH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	2 A	Quick Connect
Altran Magnetics, LLC AMI-M11J-1-1-B-1	-10 °C	40 °C	1.86 mH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	1 A	Quick Connect
Altran Magnetics, LLC AMI-M11J-1-3-B-2	-10 °C	40 °C	1.76 mH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	3 A	Quick Connect
Altran Magnetics, LLC AMI-M11J-1-10-B-2	-10 °C	40 °C	495 µH	Single Phase	Single Stage	Chassis Mount	General Purpose	250 V	60 Hz	50 Hz	10 A	Quick Connect

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.47
		10	$ 10.18
		25	$ 9.38
		50	$ 8.82
		100	$ 8.30

Description

General part information

AMI-M11J Series

Single Phase EMC/EMI Line Filter 2 A 250V 50/60Hz Single Stage Quick Connect
