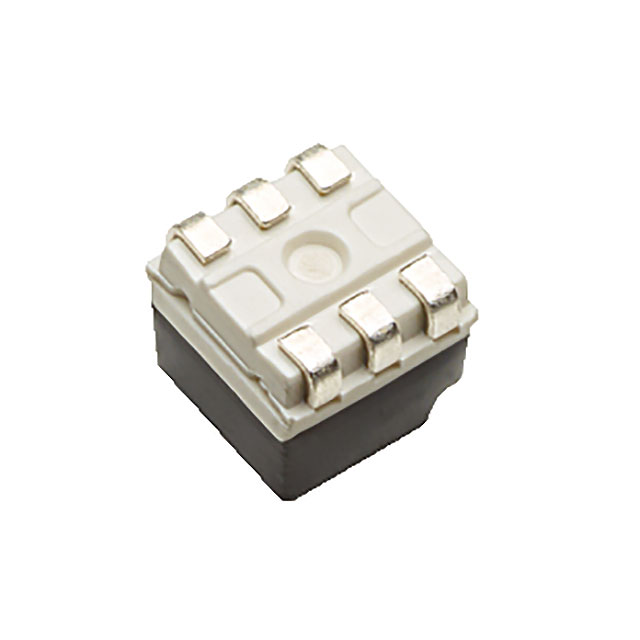

ASMB-UTF2-0E20B
ActiveBroadcom Limited
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMB-UTF2-0E20B
ActiveBroadcom Limited
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMB-UTF2-0E20B |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 2.6 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 690 mcd |
| Millicandela Rating [custom] | 1850 mcd |
| Millicandela Rating [custom] | 400 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 2.7 mm |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Wavelength - Dominant | 524 nm, 471 nm, 620 nm |
| Wavelength - Peak [custom] | 628 nm |
| Wavelength - Peak [custom] | 467 nm |
| Wavelength - Peak [custom] | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.32 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
Description
General part information
ASMB-UTF2 Series
Red, Green, Blue (RGB) 620nm Red, 524nm Green, 471nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
