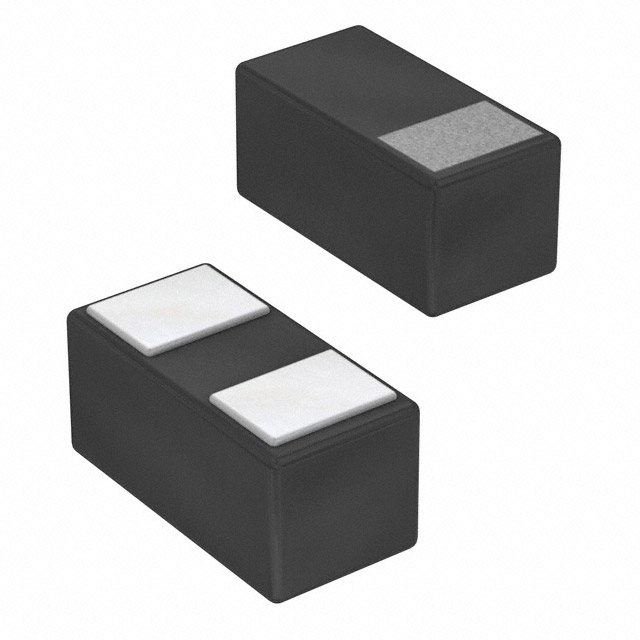

SS0503EC-TR-H

Obsolete

ON Semiconductor

DIODE SCHOTTKY 30V 500MA 2ECSP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

DIODE SCHOTTKY 30V 500MA 2ECSP

Technical Specifications

Parameters and characteristics for this part

Specification	SS0503EC-TR-H

Capacitance @ Vr, F	6 pF
Current - Average Rectified (Io)	500 mA
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-UDFN
Reverse Recovery Time (trr)	10 ns
Speed	200 mA, 500 ns
Supplier Device Package	2-ECSP1008
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	560 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Technology	Mounting Type	Supplier Device Package	Reverse Recovery Time (trr)	Speed
ON Semiconductor SS0503EC-TR-H	30 V	-55 °C	125 °C	6 pF	2-UDFN	560 mV	100 µA	500 mA	Schottky	Surface Mount	2-ECSP1008	10 ns	200 mA 500 ns
ON Semiconductor SS0503SH-TL-E	30 V	-55 °C	125 °C	13 pF	6-SMD Flat Leads		120 µA	500 mA	Schottky	Surface Mount	6-SCH	10 ns	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 500mA Surface Mount 2-ECSP1008
