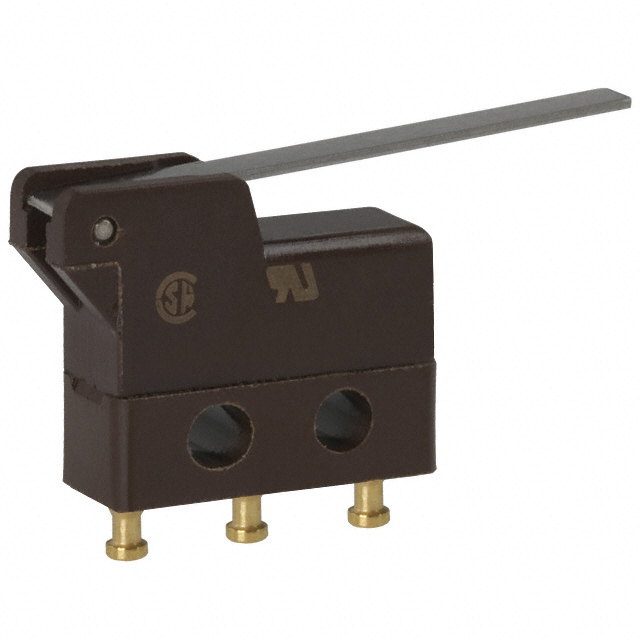

311SX2-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
311SX2-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 311SX2-T |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position | 0.325 in |
| Operating Position | 8.25 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.6 mm |
| Overtravel | 0.025 " |
| Pretravel | 0.114 in |
| Pretravel | 2.9 mm |
| Release Force | 5.099 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.73 | |
| 10 | $ 22.98 | |||
| 25 | $ 21.33 | |||
| 40 | $ 20.52 | |||
| 80 | $ 19.39 | |||
| 230 | $ 17.79 | |||
| 440 | $ 17.41 | |||
Description
General part information
311SX2 Series
Switch SPDT Chassis Mount
