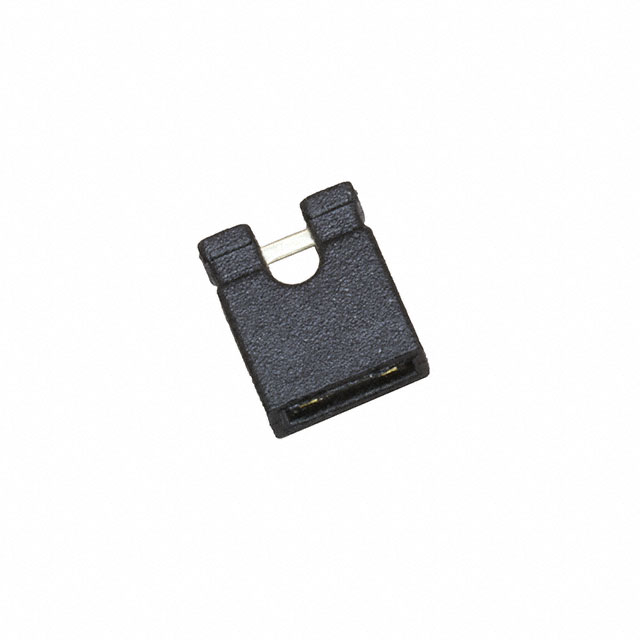

MSB-G

Active

Adam Tech

SHUNT 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

SHUNT 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	MSB-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VAC

Part	Material Flammability Rating	Housing Material	Height [z]	Height [z]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Pitch [x]	Pitch [x]	Type	Contact Finish	Color	Contact Finish Thickness	Voltage Rating
Adam Tech MSB-G	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	6 mm	0.236 "	1 x 2	2	Female Sockets	2.54 mm	0.1 in	Open Top	Gold	Black	Flash	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
