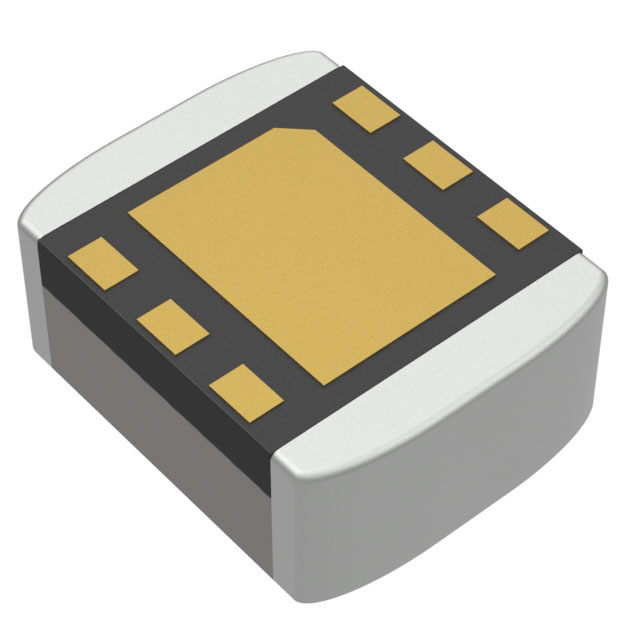

XCL102D533CR-G

Active

Torex Semiconductor Ltd

INDUCTOR BUILT-IN STEP-UP MICRO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XCL102D533CR-G

Active

Torex Semiconductor Ltd

INDUCTOR BUILT-IN STEP-UP MICRO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XCL102D533CR-G

Applications	ITE (Commercial)
Efficiency	86 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-TDFN Exposed Pad
Size / Dimension [x]	0.1 in
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	0.08 "
Size / Dimension [y]	2 mm
Size / Dimension [z]	0.04 in
Size / Dimension [z]	1 mm
Supplier Device Package	CL-2025-02
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	0.65 V
Voltage - Output 1	5.3 V

XCL102 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Supplier Device Package	Voltage - Input (Max) [Max]	Applications	Mounting Type	Features	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 1
Torex Semiconductor Ltd XCL102D303CR-G	85 °C	-40 °C	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	90 %	CL-2025-02	6 V	ITE (Commercial)	Surface Mount	OCP SCP	1	8-TDFN Exposed Pad	0.9 V	Non-Isolated PoL Module	3.06 V	2.94 V
Torex Semiconductor Ltd XCL102E303CR-G	85 °C	-40 °C	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	90 %	CL-2025-02	6 V	ITE (Commercial)	Surface Mount	OCP SCP	1	8-TDFN Exposed Pad	0.9 V	Non-Isolated PoL Module	3.06 V	2.94 V
Torex Semiconductor Ltd XCL102D543CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102E273CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102E473CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102D393CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102D273CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102D403CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad
Torex Semiconductor Ltd XCL102D533CR-G	85 °C	-40 °C	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	86 %	CL-2025-02	6 V	ITE (Commercial)	Surface Mount		1	8-TDFN Exposed Pad	0.65 V	Non-Isolated PoL Module			5.3 V
Torex Semiconductor Ltd XCL102D373CR-G										CL-2025-02			Surface Mount			8-TDFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.68
		10	$ 2.41
		25	$ 2.27
		100	$ 1.94
		250	$ 1.82
		500	$ 1.59
		1000	$ 1.32
	Digi-Reel®	1	$ 2.68
		10	$ 2.41
		25	$ 2.27
		100	$ 1.94
		250	$ 1.82
		500	$ 1.59
		1000	$ 1.32
	Tape & Reel (TR)	3000	$ 1.23
		6000	$ 1.18

Description

General part information

XCL102 Series

Non-Isolated PoL Module DC DC Converter 1 Output 5.3V 0.65V - 6V Input
