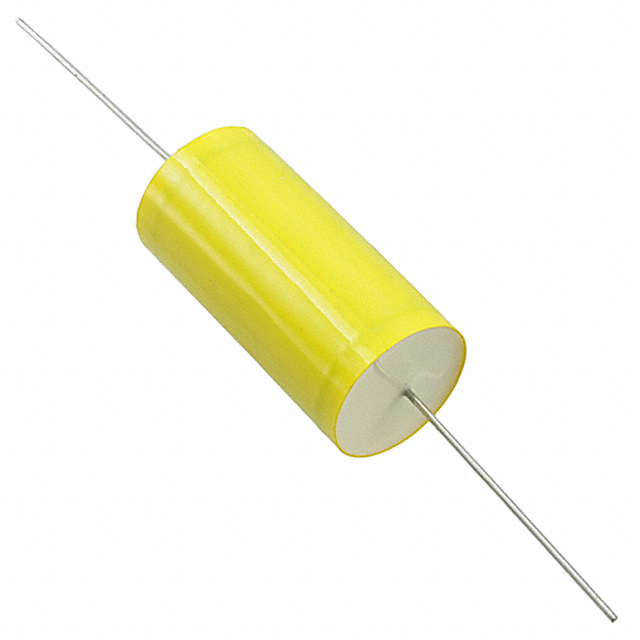

A72UT2470AA00K

Obsolete

KEMET

CAP FILM 0.047UF 10% 2KVDC AXIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.047UF 10% 2KVDC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	A72UT2470AA00K

Applications	High Pulse, DV/DT, DC Filtering, High Frequency, Switching, DC Link
Dielectric Material	Metallized, Polypropylene (PP)
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	22.5 mm
Size / Dimension [diameter]	0.886 in
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.299 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	500 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Termination	Mounting Type	Tolerance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Voltage Rating - AC	Capacitance
KEMET A72UT2220AA00K	PC Pins	Through Hole	10 %	Metallized Polypropylene (PP)	105 ░C	-55 °C	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	2 kV	2 kVDC	Axial	1.299 in	0.63 in	33 mm	16 mm	500 V	0.022 µF
KEMET A72UT2470AA00K	PC Pins	Through Hole	10 %	Metallized Polypropylene (PP)	105 ░C	-55 °C	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	2 kV	2 kVDC	Axial	1.299 in	0.886 in	33 mm	22.5 mm	500 V
