050R50-51B

Active

Parlex USA LLC

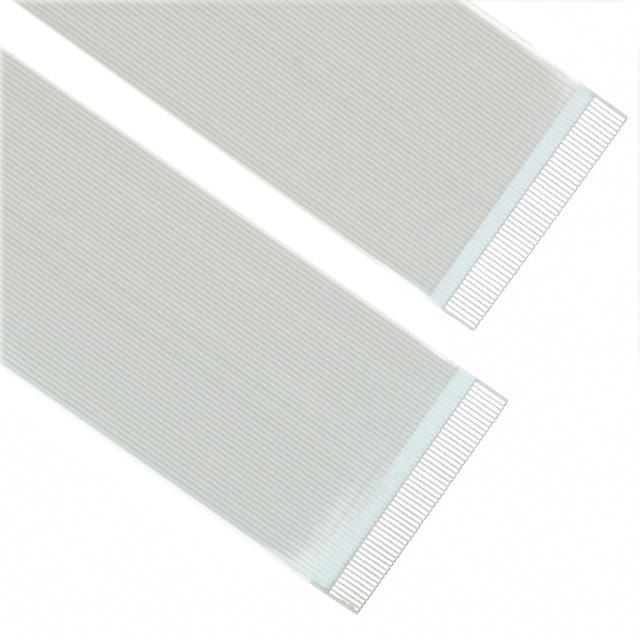

CABLE FFC/FPC 50POS 0.5MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 50POS 0.5MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	050R50-51B

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	50
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Termination Style	Pitch [x]	Pitch [x]	Length	Length	Cable Type	Length [x]	Length [x]
Parlex USA LLC 050R50-76B	0.14 in	3.56 mm	50	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3 in	76.2 mm	FFC FPC
Parlex USA LLC 050R50-152B	0.14 in	3.56 mm	50	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in			FFC FPC	5.984 in	152 mm
Parlex USA LLC 050R50-51B	0.14 in	3.56 mm	50	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	2 in	50.8 mm	FFC FPC
Parlex USA LLC 050R50-0600B	0.14 in	3.56 mm	50	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in			FFC FPC	23.6 in	600 mm
Parlex USA LLC 050R5-127B	0.14 in	3.56 mm	5	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	5 in	127 mm	FFC FPC
Parlex USA LLC 050R5-76B	0.14 in	3.56 mm	5	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3 in	76.2 mm	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position FFC, FPC Cable 0.020" (0.50mm) 2.000" (50.80mm)
