1785/50 100SF

Active

3M (TC)

CBL RIBN 50COND TWIST PAIR 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1785/50 100SF

Active

3M (TC)

CBL RIBN 50COND TWIST PAIR 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1785/50 100SF

Cable Type	Flat Twisted Pair, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Splice Free
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	15.24 m
Length	50 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	50
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2912
Ribbon Thickness	3.05 mm
Ribbon Thickness	0.12 in
Ribbon Width [x]	2.63 in
Ribbon Width [x]	66.8 mm
Shielding	Shielded
Voltage	150 V
Wire Gauge	28 AWG

1785 Series

Part	Shielding	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Ratings	Length	Length	Number of Conductors	Ribbon Width [x]	Ribbon Width [x]	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Insulation Resistance	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length [x]	Length [x]	Ribbon Width	Ribbon Width	Features
3M (TC) 1785/50	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912	200 '	60.96 m	50	2.63 in	66.8 mm	28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V
3M (TC) 1785/40 100	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			40			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m	2.13 in	54.1 mm
3M (TC) 1785/64 100SF	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			64			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m	3.38 in	85.85 mm	Splice Free
3M (TC) 1785/34TB	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			34			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m	1.83 in	46.48 mm
3M (TC) 1785/50 100SF	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912	50 ft	15.24 m	50	2.63 in	66.8 mm	28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m			Splice Free
3M (TC) 1785/40 100SF	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912	50 ft	15.24 m	40			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	10 ft 100 ft	3.05 m 30.48 m	2.13 in	54.1 mm	Splice Free
3M (TC) 1785/34 100	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			34			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m	1.83 in	46.48 mm
3M (TC) 1785/34 100SF	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912	25 ft 50 ft	7.62 m 15.24 m	34			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	10 ft 100 ft	3.05 m 30.48 m	1.83 in	46.48 mm	Splice Free
3M (TC) 1785/34BP	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			34			28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m	1.83 in	46.48 mm
3M (TC) 1785/60 100	Shielded	Flat Twisted Pair Flat Jacket	-20 C	80 C	0.05 in	1.27 mm	3.05 mm	0.12 in	UL Style 2912			60	3.13 in		28 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	1 GOhms	Black	7	36 AWG	150 V	100 ft	30.48 m		79.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 579.99
		5	$ 472.46
		10	$ 433.36
	Spool	100	$ 10.80
		200	$ 9.81
		300	$ 9.28
		500	$ 8.66
		700	$ 8.27
		1000	$ 8.12

Description

General part information

1785 Series

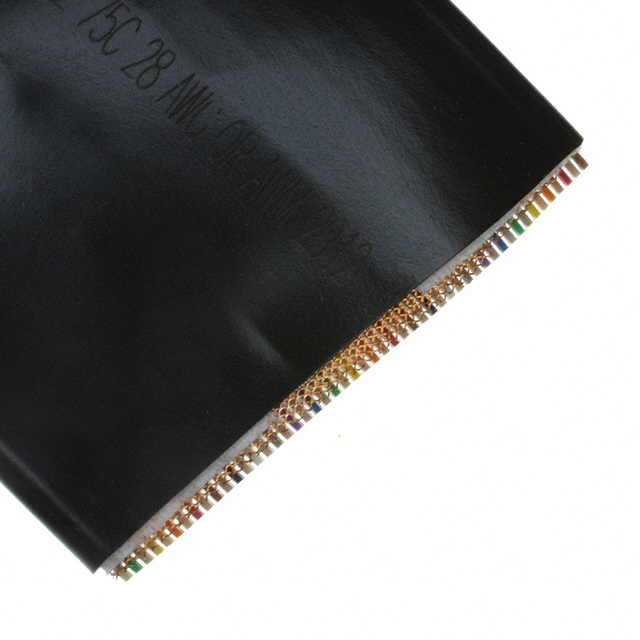

Flat Ribbon Cable Black 50 (25 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair, Flat Jacket 100.0' (30.48m)
