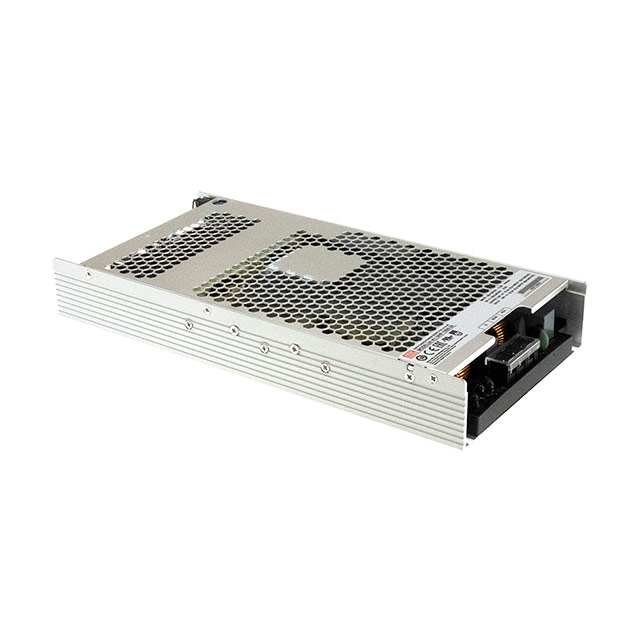

UHP-1500-24

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 1500W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 1500W

Technical Specifications

Parameters and characteristics for this part

Specification	UHP-1500-24

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, CE, EAC, CB
Current - Output 1	62.5 A
Efficiency	95 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	1500 W
Size / Dimension [x]	11.42 in
Size / Dimension [x]	290 mm
Size / Dimension [y]	5.51 "
Size / Dimension [y]	140 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Isolation	3750 V
Voltage - Output 1	24 V

Part	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Mounting Type	Applications	Approval Agency	Type	Number of Outputs	Features	Power (Watts)	Voltage - Isolation
MEAN WELL USA Inc. UHP-1500-24	62.5 A	5.51 "	11.42 in	140 mm	41 mm	290 mm	1.61 "	70 °C	-30 °C	95 %	24 V	Chassis Mount	Household Appliances ITE (Commercial)	CB CE cURus EAC	Enclosed	1	Adjustable Output PFC Remote On/Off Universal Input	1500 W	3750 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 250 ~ 370 VDC Input
