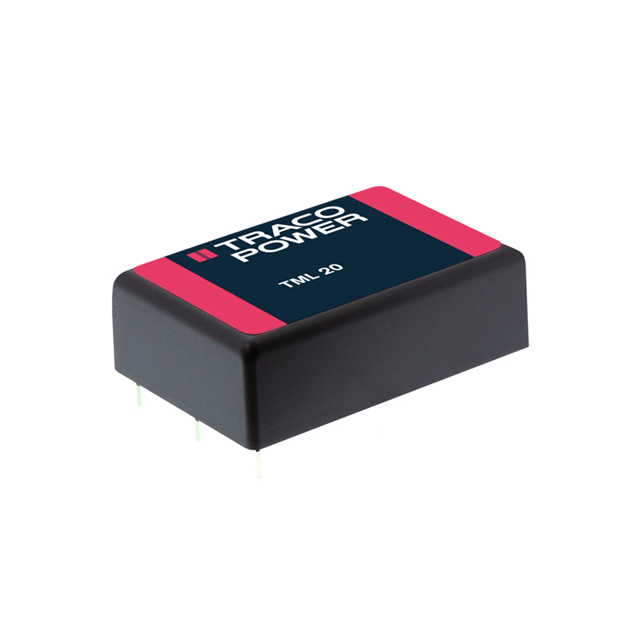

TML 20103

Active

Traco Power

AC/DC CONVERTER 3.3V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TML 20103

Active

Traco Power

AC/DC CONVERTER 3.3V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TML 20103

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	4.5 A
Efficiency	84 %
Features	Universal Input
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	5 Leads, 8-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	2.74 "
Size / Dimension [x]	69.5 mm
Size / Dimension [y]	1.87 "
Size / Dimension [y]	47.5 mm
Size / Dimension [z]	0.85 "
Size / Dimension [z]	21.7 mm
Type	Enclosed
Voltage - Input [Max]	375 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Output 1	3.3 V

TML 20 Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Approval Agency	Power (Watts)	Voltage - Output 1	Package / Case	Applications	Type	Number of Outputs	Features	Current - Output (Max) [Max]	Load Regulation	Voltage - Output 2	Line Regulation	Voltage - Output 3	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TML 20103	Through Hole	-25 °C	70 °C	2.74 "	69.5 mm	1.87 "	0.85 "	47.5 mm	21.7 mm	90 VAC 100 V	264 VAC 375 VDC	84 %	CB CE cURus	15 W	3.3 V	5 Leads 8-DIP Module	ITE (Commercial)	Enclosed	1	Universal Input	4.5 A
Traco Power TML 20512	Through Hole	-25 °C	70 °C	2.74 "	69.5 mm	1.87 "	0.85 "	47.5 mm	21.7 mm	90 VAC 100 V	264 VAC 375 VDC	84 %	CB CE cURus	20 W	5 V	8-DIP Module	ITE (Commercial)	Enclosed	3	Universal Input	2.8 A	2 % 5 %	12 V	1 % 5 %	-12 V	250 mA
Traco Power TML 20115	Through Hole	-25 °C	70 °C	2.74 "	69.5 mm	1.87 "	0.85 "	47.5 mm	21.7 mm	90 VAC 100 V	264 VAC 375 VDC	84 %	CB CE cURus	20 W	15 V	5 Leads 8-DIP Module	ITE (Commercial)	Enclosed	1	Universal Input	1.34 A
Traco Power TML 20212	Through Hole	-25 °C	70 °C	2.74 "	69.5 mm	1.87 "	0.85 "	47.5 mm	21.7 mm	90 VAC 100 V	264 VAC 375 VDC	84 %	CB CE cURus	20 W	12 V	8-DIP Module 6 Leads	ITE (Commercial)	Enclosed	2	Universal Input		3 %		0.5 %			833 mA	833 mA
Traco Power TML 20105	Through Hole	-25 °C	70 °C	2.74 "	69.5 mm	1.87 "	0.85 "	47.5 mm	21.7 mm	90 VAC 100 V	264 VAC 375 VDC	84 %	CB CE cURus	20 W	5 V	5 Leads 8-DIP Module	ITE (Commercial)	Enclosed	1	Universal Input	4 A	1 %		0.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 53.44

Description

General part information

TML 20 Series

Enclosed AC DC Converters 1 Output 3.3V 4.5A 90 ~ 264 VAC, 100 ~ 375 VDC Input
