5M160ZE64C4N

Active

Altera

IC CPLD 128MC 7.5NS 64EQFP

Search across all available documentation for this part.

Active

Altera

IC CPLD 128MC 7.5NS 64EQFP

Technical Specifications

Parameters and characteristics for this part

Specification	5M160ZE64C4N

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of I/O	54
Number of Logic Elements/Blocks	160
Number of Macrocells	128
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

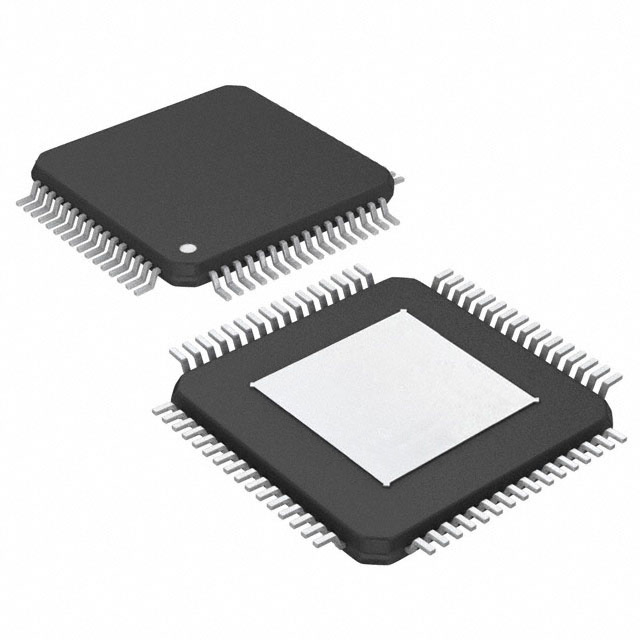

Package / Case	64-TQFP Exposed Pad
Programmable Type	In System Programmable
Supplier Device Package	64-EQFP (7x7)
Voltage Supply - Internal [Max]	1.89 V
Voltage Supply - Internal [Min]	1.71 V

Part	Delay Time tpd(1) Max [Max]	Supplier Device Package	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Mounting Type	Package / Case	Programmable Type	Number of I/O	Number of Logic Elements/Blocks	Operating Temperature [Max]
Altera 5M160ZE64C4N	7.5 ns	64-EQFP (7x7)	128	1.71 V	1.89 V	Surface Mount	64-TQFP Exposed Pad	In System Programmable	54	160	85 °C
Altera 5M160ZT100C5N	7.5 ns	100-TQFP (14x14)	128	1.71 V	1.89 V	Surface Mount	100-TQFP	In System Programmable	79	160	85 °C
Altera 5M160ZM68C5N	7.5 ns	68-MBGA (5x5)	128	1.71 V	1.89 V	Surface Mount	68-TFBGA	In System Programmable	52	160	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.33

General part information

IC CPLD 128MC 7.5NS 64EQFP

Technical documentation and resources
