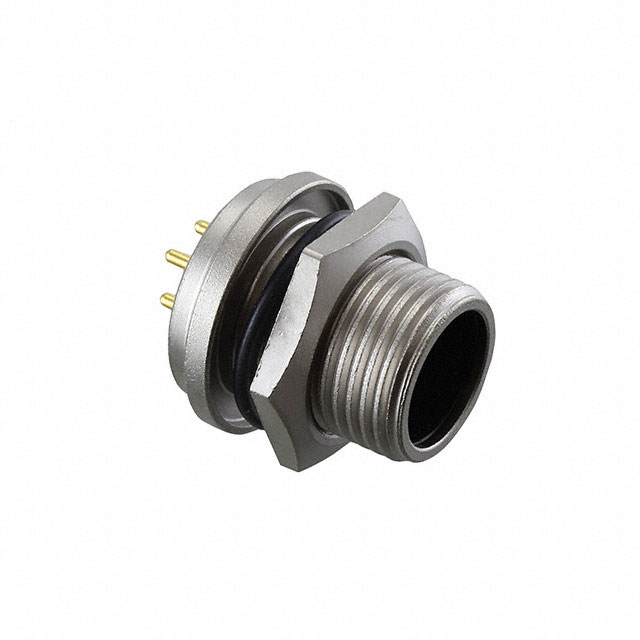

SF7281-6PG-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Ingress Protection	Contact Material	Color	Primary Material	Shell Finish	Insert Material	Mounting Feature	Shielding	Mounting Type	Shell Material	Contact Finish - Mating
Conxall/Switchcraft SF7281-8SG-3ES	Solder	Keyed	-40 °C	120 °C	8	Receptacle Female Sockets	IP66/IP68	Copper Alloy	Silver	Metal	Nickel	Polyester Resin	Bulkhead - Front Side Nut	Shielded	Panel Mount Through Hole	Copper Alloy	Gold
Conxall/Switchcraft SF7281-6PG-3ES	Solder	Keyed	-40 °C	120 °C	6	Male Pins Receptacle	IP66/IP68	Copper Alloy	Silver	Metal	Nickel	Polyester Resin	Bulkhead - Front Side Nut	Shielded	Panel Mount Through Hole	Copper Alloy	Gold
Conxall/Switchcraft SF7281-8PG-3ES	Solder	Keyed	-40 °C	120 °C	8	Male Pins Receptacle	IP66/IP68	Copper Alloy	Silver	Metal	Nickel	Polyester Resin	Bulkhead - Front Side Nut	Shielded	Panel Mount Through Hole	Copper Alloy	Gold
Conxall/Switchcraft SF7281-3PG-3ES	Solder	Keyed	-40 °C	120 °C		Male Pins Receptacle	IP66/IP68	Copper Alloy	Silver	Metal	Nickel	Polyester Resin	Bulkhead - Front Side Nut	Shielded	Panel Mount Through Hole	Copper Alloy	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.14
