3020-16-0300-00-TR

Active

CnC Tech, LLC

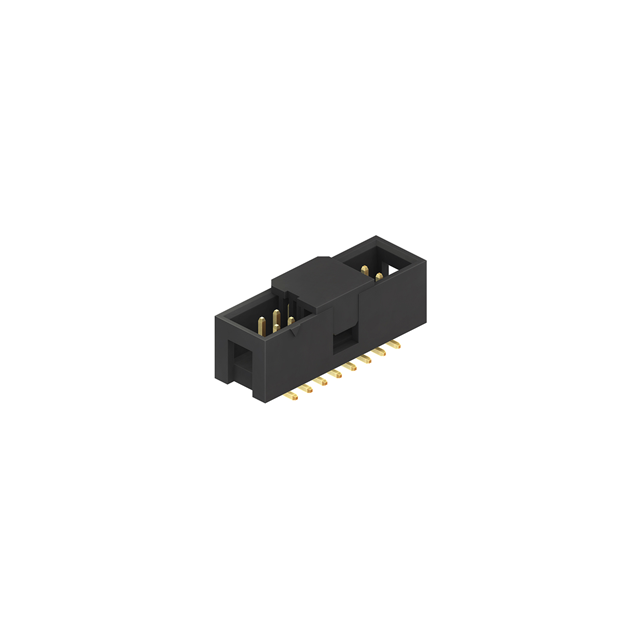

CONN HEADER SMD 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

3020-16-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Soldering Guide 3X10,3X20,3221 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-16-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3020-16 Series

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Fastening Type	Features	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Material	Termination	Insulation Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Style	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Number of Positions	Shrouding	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Voltage Rating	Insulation Height [z]	Insulation Height [z]
CnC Tech, LLC 3020-16-0300-00-TR	Gold	-40 °C	105 ░C	Header	Surface Mount	Push-Pull	Keying Slot Pick and Place	3 A	Flash	Copper Alloy	Solder	Nylon 9T Polyamide (PA9T)	Square	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	2	All	16	Shrouded - 4 Wall	Gold	9 mm	0.354 in	Male Pin
CnC Tech, LLC 3020-16-0100-00	Gold	-40 °C	105 ░C	Header	Through Hole	Push-Pull	Keying Slot	3 A	Flash	Brass	Solder	Nylon 9T Polyamide (PA9T)	Square	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	2	All	16	Shrouded - 4 Wall	Gold	9 mm	0.354 in	Male Pin	0.118 in	3 mm	250 VAC
CnC Tech, LLC 3020-16-0200-00	Gold	-40 °C	105 ░C	Header	Through Hole Right Angle	Push-Pull	Keying Slot	3 A	Flash	Brass	Solder	Nylon 9T Polyamide (PA9T)	Square	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	2	All	16	Shrouded - 4 Wall	Gold			Male Pin	0.118 in	3 mm	250 VAC	0.346 in	8.8 mm
CnC Tech, LLC 3020-16-0300-00	Gold	-40 °C	105 ░C	Header	Surface Mount	Push-Pull	Keying Slot	3 A	Flash	Brass	Solder	Nylon 9T Polyamide (PA9T)	Square	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	Flash	Board to Cable/Wire	UL94 V-0	2	All	16	Shrouded - 4 Wall	Gold	9 mm	0.354 in	Male Pin
