MDM-51SCBRM7-A174

Active

ITT Cannon, LLC

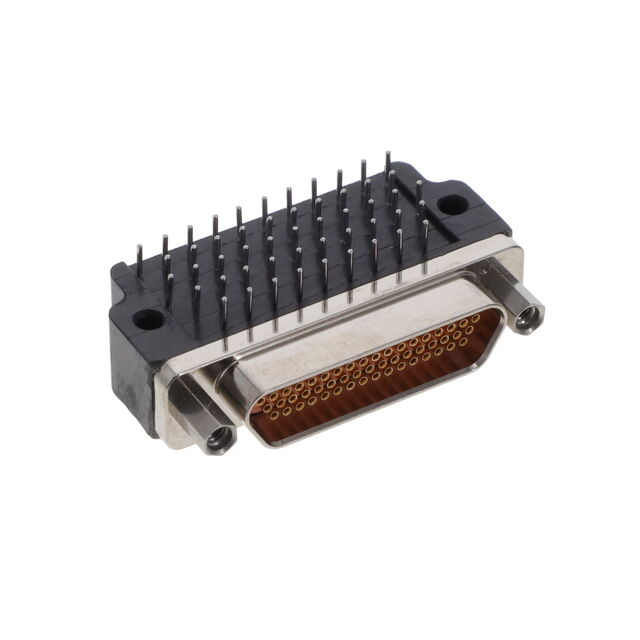

CONN MICRO-D RCPT 51POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MDM-51SCBRM7A174

MDM-51SCBRM7-A174

Active

ITT Cannon, LLC

CONN MICRO-D RCPT 51POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet MDM-51SCBRM7A174

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-51SCBRM7-A174

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Mating Side, Female Screwlock (2-56)
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	51
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Solder

MDM-5 Series

Part	Contact Type	Current Rating (Amps)	Connector Style	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Wire Gauge	Number of Rows	Contact Finish	Contact Material	Primary Material	Flange Feature	Number of Positions	Shell Material, Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Mounting Type	Type	1st Connector	Color	Length [x]	Length [x]	2nd Connector	Backset Spacing	Backset Spacing
ITT Cannon, LLC MDM-51PSF-A174	Signal	3 A	D-Type Micro-D	Male Pins Plug	0.043	0.05	Liquid Crystal Polymer (LCP)	26 AWG	3	Gold	Copper Alloy	Metal	Housing/Shell (Unthreaded)	51	Aluminum Alloy Electroless Nickel Plated
ITT Cannon, LLC MDM-51SSM2	Signal	3 A	D-Type Micro-D	Receptacle Female Sockets	0.043	0.05	Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy		Cable Side Male Jackscrew (2-56)	51	Aluminum Yellow Chromate Plated Cadmium	Shielded	-55 °C	125 °C
ITT Cannon, LLC MDM-51SBRM7	Signal	3 A	D-Type Micro-D	Receptacle Female Sockets			Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy		Female Screwlock (2-56) Mating Side	51	Aluminum Yellow Chromate Plated Cadmium	Shielded	-55 °C	125 °C	Solder	0.05	0.1	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-51SCBRM7-A174	Signal	3 A	D-Type Micro-D	Receptacle Female Sockets			Liquid Crystal Polymer (LCP)		5	Gold	Copper Alloy		Female Screwlock (2-56) Mating Side	51	Aluminum Electroless Nickel Plated	Shielded	-55 °C	125 °C	Solder	0.05	0.1	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-51PH006M3										Gold				51									D-Type Micro-D	Male Pins Receptacle	Individual Multiple	3 ft	914.4 mm	Individual Wire Leads
ITT Cannon, LLC MDM-51PSP-A174	Signal	3 A	D-Type Micro-D	Male Pins Plug	0.043	0.05	Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy		Female Screwlock (2-56) Mating Side	51	Aluminum Electroless Nickel Plated	Shielded	-55 °C	125 °C
ITT Cannon, LLC MDM-51PSA	Signal	3 A	D-Type Micro-D	Male Pins Plug	0.043	0.05	Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy		Housing/Shell (Unthreaded)	51	Aluminum Yellow Chromate Plated Cadmium	Shielded	-55 °C	125 °C
ITT Cannon, LLC MDM-51PCBRM7-A174-F222	Signal	3 A	D-Type Micro-D	Male Pins Plug	0.043	0.05	Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy	Metal	Female Screwlock (2-56) Mating Side	51	Aluminum Alloy Electroless Nickel Plated				Solder			Through Hole Right Angle							3.3 mm	0.13 in
ITT Cannon, LLC MDM-51PCBR-A174
ITT Cannon, LLC MDM-51SBRP	Signal	3 A	D-Type Micro-D	Receptacle Female Sockets			Liquid Crystal Polymer (LCP)		3	Gold	Copper Alloy		Female Screwlock (2-56) Mating Side	51	Aluminum Yellow Chromate Plated Cadmium	Shielded	-55 °C	125 °C	Solder	0.05	0.1	Panel Mount Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 674.46
		10	$ 625.00
Newark	Each	10	$ 627.72
		25	$ 605.46
		50	$ 569.85

Description

General part information

MDM-5 Series

51 Position D-Type, Micro-D Receptacle, Female Sockets Connector
