T 3475 004

Active

Amphenol Tuchel Industrial

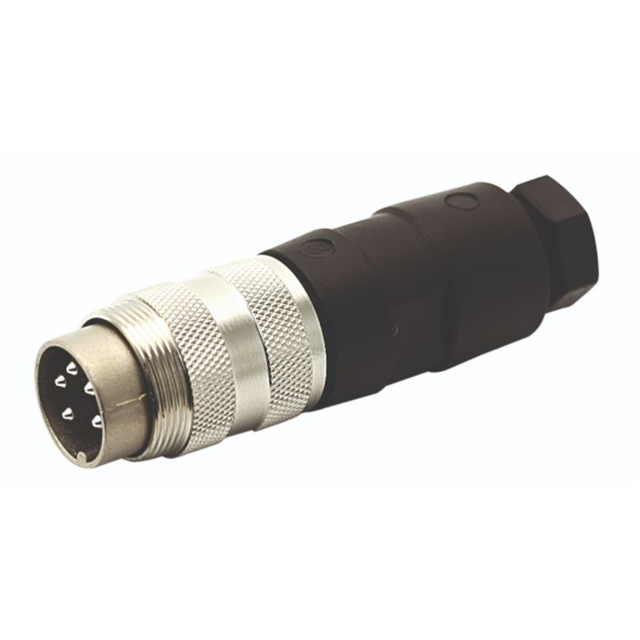

CONN PLUG MALE 7P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 7P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Shape	Contact Size	Note	Orientation	Housing Color	Contact Type	Type	Shell Material	Number of Positions	Features	Shell Finish	Mounting Type	Shielding	Ingress Protection	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Connector Type	Material Flammability Rating	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Voltage Rating	Color
Amphenol Tuchel Industrial T 3475 552	Circular	1.5 mm	Contacts Not Included	Keyed	Black Silver	Crimp	For Male Pins	Die Cast	7	Backshell Cable Clamp Coupling Nut	Nickel	Free Hanging (In-Line)	Shielded	IP40	M16-7	100 °C	-40 °C	Thermoplastic	Plug Housing	UL94 V-0
Amphenol Tuchel Industrial T 3475 004				Keyed				Die Cast	7	Cable Clamp Strain Relief	Nickel	Free Hanging (In-Line)	Shielded	IP40	M16-7	100 °C	-40 °C		Male Pins Plug		Silver	Metal	7 A	250 VDC	Silver
Amphenol Tuchel Industrial T 3475 013				Keyed				Die Cast	7	Strain Relief	Nickel	Free Hanging (In-Line)	Shielded	IP40	M16-7	100 °C	-40 °C		Male Pins Plug		Silver	Metal	7 A	250 VDC	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 10.39

General part information

7 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources
