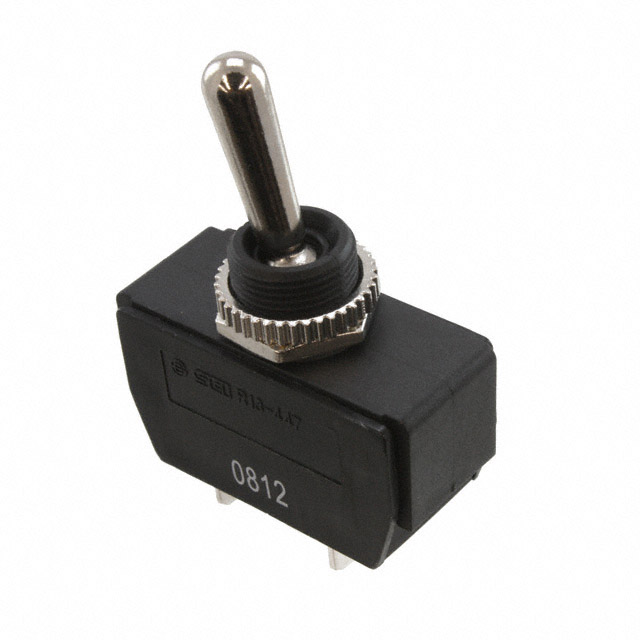

GTS447N101HR
ActiveCW Industries
SWITCH TOGGLE SPST-NO 16A 277V
Deep-Dive with AI
Search across all available documentation for this part.
GTS447N101HR
ActiveCW Industries
SWITCH TOGGLE SPST-NO 16A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTS447N101HR |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPST-NO |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.53 | |
| 10 | $ 4.93 | |||
| 25 | $ 4.67 | |||
| 50 | $ 4.50 | |||
| 100 | $ 4.28 | |||
| 250 | $ 4.09 | |||
| 500 | $ 3.73 | |||
| 1000 | $ 3.54 | |||
Description
General part information
GTS447N Series
Toggle Switch SPST-NO Panel Mount
