6282-2SG-522

Active

Conxall/Switchcraft

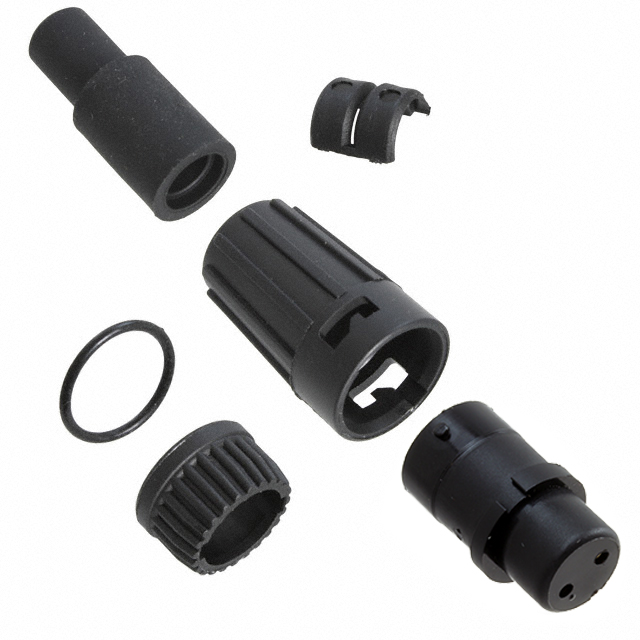

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-2SG-522

Active

Conxall/Switchcraft

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6282-2SG-522

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	6.35 mm
Cable Opening [Max] [diameter]	0.25 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6282-2SG Series

Part	Features	Fastening Type	Applications	Connector Type	Contact Material	Orientation	Current Rating (Amps)	Voltage Rating	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shielding	Primary Material	Mounting Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6282-2SG-519	Backshell	Bayonet Lock	Automotive Communication Systems Instrumentation	Female Sockets Plug	Brass	Keyed	Varies by Wire Gauge	600 V	Weathertight	0.21 in	0.19 in	4.83 mm	5.33 mm	Nylon Polyamide (PA)	Black	-40 °C	115 °C	2	Unshielded	Plastic	Free Hanging (In-Line)	Gold
Conxall/Switchcraft 6282-2SG-522	Backshell	Bayonet Lock	Automotive Communication Systems Instrumentation	Female Sockets Plug	Brass	Keyed	Varies by Wire Gauge	600 V	Weathertight	0.25 in	0.22 in	5.59 mm	6.35 mm	Nylon Polyamide (PA)	Black	-40 °C	115 °C	2	Unshielded	Plastic	Free Hanging (In-Line)	Gold
Conxall/Switchcraft 6282-2SG-513	Backshell	Bayonet Lock	Automotive Communication Systems Instrumentation	Female Sockets Plug	Brass	Keyed	Varies by Wire Gauge	600 V	Weathertight					Nylon Polyamide (PA)	Black	-40 °C	115 °C	2	Unshielded	Plastic	Free Hanging (In-Line)	Gold	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6282-2SG-315	Backshell	Bayonet Lock	Automotive Communication Systems Instrumentation	Female Sockets Plug	Brass	Keyed	Varies by Wire Gauge	600 V	Weathertight					Nylon Polyamide (PA)	Black	-40 °C	115 °C	2	Unshielded	Plastic	Free Hanging (In-Line)	Gold	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6282-2SG-516	Backshell	Bayonet Lock	Automotive Communication Systems Instrumentation	Female Sockets Plug	Brass	Keyed	Varies by Wire Gauge	600 V	Weathertight					Nylon Polyamide (PA)	Black	-40 °C	115 °C	2	Unshielded	Plastic	Free Hanging (In-Line)	Gold			0.16 in	0.18 in	4.06 mm	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.94
		10	$ 8.95
		25	$ 8.43
		50	$ 8.21
		100	$ 8.00
		300	$ 7.13
		500	$ 6.70
		1000	$ 5.92

Description

General part information

6282-2SG Series

2 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
