TCR15AGADJ,LF

Active

Toshiba Semiconductor and Storage

IC REG LIN POS ADJ 1.5A 6WCSPF

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC REG LIN POS ADJ 1.5A 6WCSPF

Technical Specifications

Parameters and characteristics for this part

Specification	TCR15AGADJ,LF

Control Features	Enable
Current - Output	1.5 A
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable

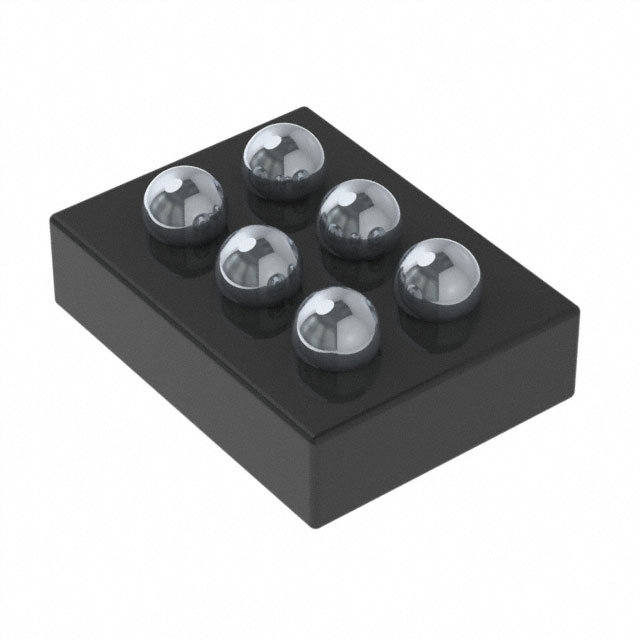

Package / Case	WLCSP, 6-XFBGA
Protection Features	Under Voltage Lockout (UVLO), Over Temperature, Over Current
PSRR	95 dB
Supplier Device Package	6-WCSPF (0.80x1.2)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Max) [Max]	3.6 V
Voltage - Output (Min/Fixed)	0.6 V

Part	PSRR	Control Features	Mounting Type	Voltage - Input (Max) [Max]	Output Configuration	Package / Case	Protection Features	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators	Output Type	Current - Output	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]
Toshiba Semiconductor and Storage TCR15AGADJ,LF	95 dB	Enable	Surface Mount	5.5 V	Positive	6-XFBGA WLCSP	Over Current Over Temperature Under Voltage Lockout (UVLO)	6-WCSPF (0.80x1.2)	-40 °C	85 °C	1	Adjustable	1.5 A	0.6 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 6-WCSPF (0.80x1.2)
