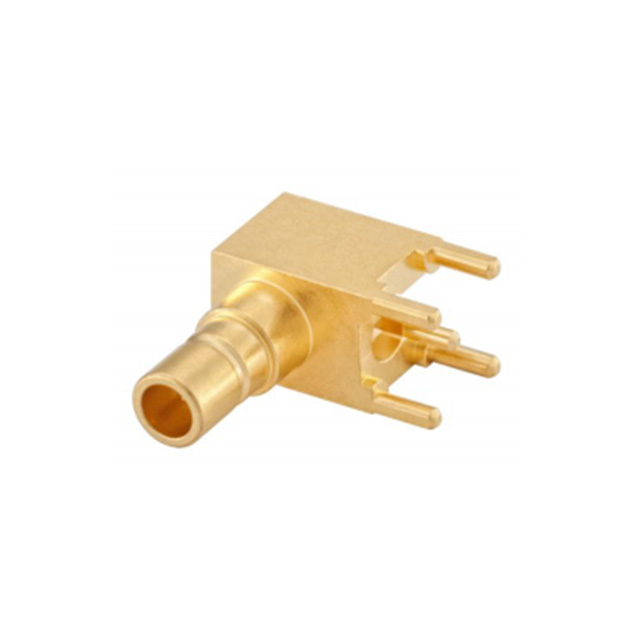

59S225-400L5
ActiveRosenberger
CONN SMB PLUG R/A 50OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
59S225-400L5
ActiveRosenberger
CONN SMB PLUG R/A 50OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 59S225-400L5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA), Nylon 6T |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.24 | |
| 10 | $ 3.85 | |||
| 25 | $ 3.65 | |||
| 50 | $ 3.56 | |||
| 100 | $ 3.39 | |||
| 300 | $ 2.97 | |||
| 500 | $ 2.88 | |||
| 1000 | $ 2.46 | |||
| 2500 | $ 2.29 | |||
Description
General part information
59S225 Series
SMB Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
