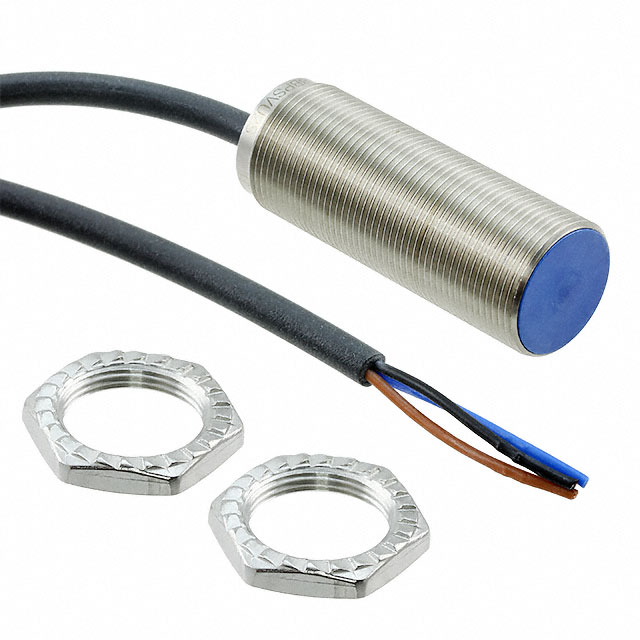

SENSOR PROX INDUCT 8MM IP69K CYL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072813

Active

SICK, Inc.

SENSOR PROX INDUCT 8MM IP69K CYL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072813

Indicator [custom]	LED
Ingress Protection	IP69K
Material - Body	Stainless Steel
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18
Response Frequency	1 kHz
Sensing Distance	0.315 in
Sensing Distance	8 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IMB18 Series

Part	Output Type	Response Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Shielding	Package / Case	Sensor Type	Termination Style	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Indicator [custom]	Material - Body
SICK, Inc. 1072832	PNP-NC 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Cable Leads	0.472 in	12 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072808	NPN-NO 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072810	PNP-NC 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.472 in	12 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072813	PNP-NO 3-Wire	1 kHz	30 VDC	10 VDC	Unshielded	Cylinder Threaded - M18	Inductive	Cable Leads	0.315 in	8 mm	-40 °C	100 °C	IP69K	LED	Stainless Steel
SICK, Inc. 1074373	NO 2-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	LED	Plastic
SICK, Inc. 1074376	4-Wire PNP-NC/NO	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	LED	Plastic
SICK, Inc. 1072822	PNP-NC 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072814	PNP-NC 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Cable Leads	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072833	NPN-NO 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Cable Leads	0.472 in	12 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic
SICK, Inc. 1072809	NPN-NC 3-Wire	1 kHz	30 VDC	10 VDC	Shielded	Cylinder Threaded - M18	Inductive	Connector	0.315 in	8 mm	-40 °C	100 °C	IP68 IP69K	No Indicator	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.27
		10	$ 42.88
