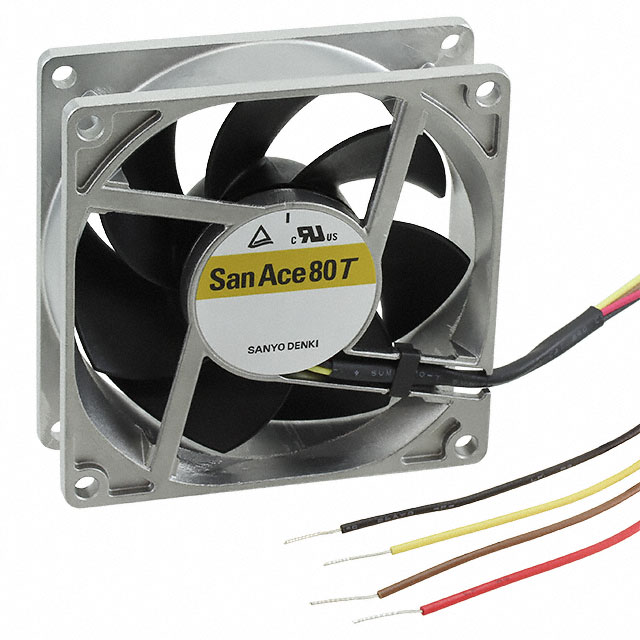

9GT0824P4S001

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GT0824P4S001

Air Flow	65.7 CFM
Air Flow	1.84 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.22 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	5.28 W
RPM	6700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.574 in H2O
Static Pressure	143 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	130.18 g
Weight	0.287 lb
Width [y]	25 mm

Part	Termination	Current Rating (Amps)	Material - Frame	Fan Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Noise	Material - Blade	Voltage - Rated	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Width [y]	Features	Power (Watts)	Bearing Type	Air Flow	Air Flow	Lifetime @ Temp.	Static Pressure	Static Pressure	Width [x]
Sanyo Denki America Inc. 9GT0824P4S001	4 Wire Leads	0.22 A	Aluminum	Tubeaxial	CSA TUV UL	80 mm	80 mm	46 dB(A)	Plastic	24 VDC	130.18 g	0.287 lb	-40 °C	-40 °C	85 °C	85 °C	6700 RPM	25 mm	PWM Control Speed Sensor (Tach)	5.28 W	Ball	65.7 CFM	1.84 m³/min	40000 Hrs	0.574 in H2O	143 Pa
Sanyo Denki America Inc. 9GT0824S4001	3 Wire Leads	0.22 A	Aluminum	Tubeaxial	CSA TUV UL	80 mm	80 mm	46 dB(A)	Plastic	24 VDC	130.18 g	0.287 lb	-40 °C	-40 °C	85 °C	85 °C	6700 RPM		Locked Rotor Protection Speed Sensor (Tach)	5.28 W	Ball	65.7 CFM	1.84 m³/min	40000 Hrs	0.57 in H2O	142 Pa	25.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 65.7 CFM (1.84m³/min) 4 Wire Leads
