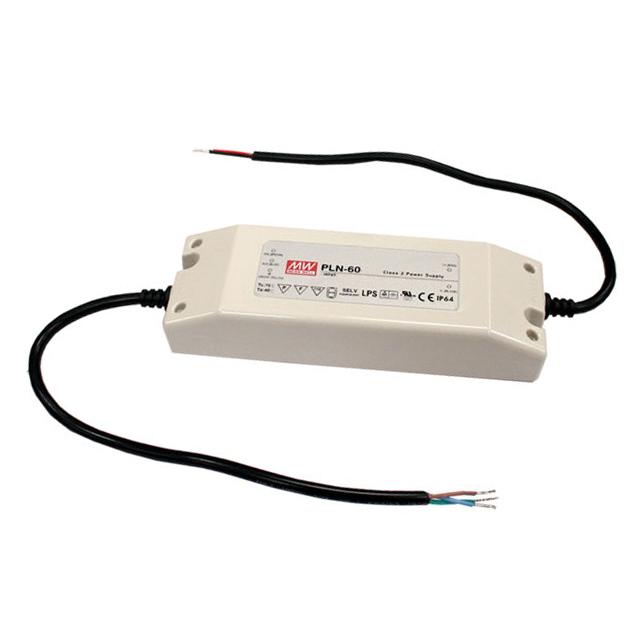

PLN-60-24
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 16.8-24V 2.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLN-60-24
NRNDMEAN WELL USA Inc.
LED DRVR CC AC/DC 16.8-24V 2.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLN-60-24 |
|---|---|
| Approval Agency | cURus, CE, PSE, CB, TUV |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 87 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 60 W |
| Ratings | IP64 |
| Size / Dimension [x] | 181 mm |
| Size / Dimension [x] | 7.13 in |
| Size / Dimension [y] | 61.5 mm |
| Size / Dimension [y] | 2.42 in |
| Size / Dimension [z] | 35 mm |
| Size / Dimension [z] | 1.38 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 24 V |
| Voltage - Output [Min] | 16.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 51.08 | |
| 10 | $ 45.84 | |||
| 25 | $ 43.91 | |||
Description
General part information
PLN-60 Series
2.5A 16.8 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
