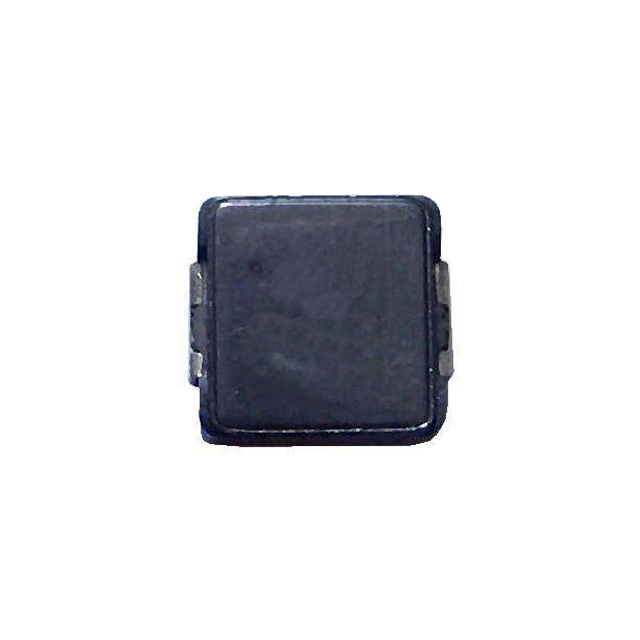

SCIHP1350-1R5M

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 1.50UH 35A 4.3MOHMS 200KHZ

Search across all available documentation for this part.

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 1.50UH 35A 4.3MOHMS 200KHZ

Technical Specifications

Parameters and characteristics for this part

Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz

Part	Package / Case	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Type	Shielding	Current Rating (Amps)	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Signal Transformer SCIHP0730-4R7M	Nonstandard	8 A	20 %	200 kHz	Surface Mount	7.3 mm	0.268 in	0.287 in	6.8 mm	40 mOhm	-55 °C	125 °C	4.7 ÁH	Wirewound	Shielded	5 A	3 mm	0.118 in
Signal Transformer SCIHP0718-4R7M	Nonstandard	5.5 A	20 %	200 kHz	Surface Mount	7.3 mm	0.268 in	0.287 in	6.8 mm	78 mOhm	-55 °C	125 °C	4.7 ÁH	Wirewound	Shielded	3 A		0.071 "	1.8 mm
Signal Transformer SCIHP1350-1R5M	Nonstandard	35 A	20 %	200 kHz	Surface Mount	13.8 mm	0.508 in	0.543 "	12.9 mm	4.3 mOhm	-55 °C	125 °C	1.5 µH	Wirewound	Shielded	18 A				0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Inductors - SMD Inductor SMD 4.70uH 8A 40mohms 200KHz
