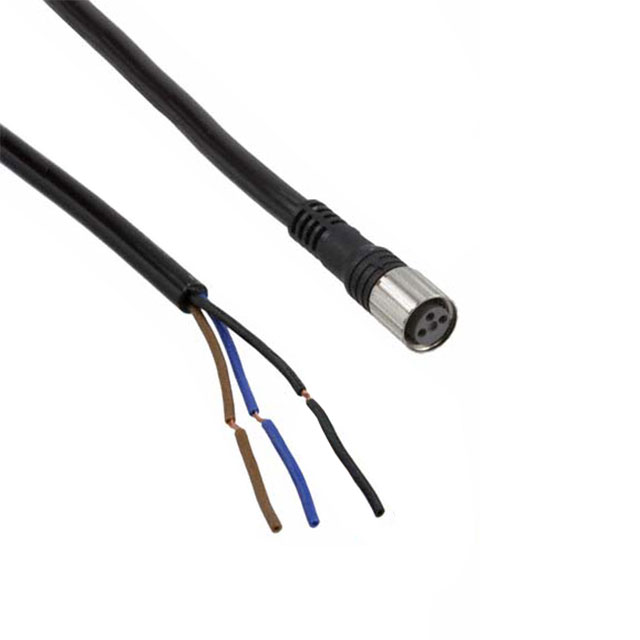

XS3F-M8PUR3S2M

Active

Omron Electronics Inc-EMC Div

CBL CIRC 3POS FEM TO WIRE 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

XS3F-M8PUR3S2M

Active

Omron Electronics Inc-EMC Div

CBL CIRC 3POS FEM TO WIRE 6.56'

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS3F-M8PUR3S2M

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

XS3F Series

Part	1st Connector Gender	1st Connector Number of Positions Loaded	Shielding	Color	2nd Connector Type	1st Connector Orientation [custom]	1st Connector Number of Positions	Length	Length	Cable Material	Usage	Ingress Protection	Cable Type	1st Connector Shell Size - Insert	1st Connector Mounting Type	Assembly Configuration	1st Connector Type	Length [x]	Length [x]
Omron Electronics Inc-EMC Div XS3F-M8PVC3S6M	Female Sockets	All	Unshielded	Black	Wire Leads	Keyed	3	19.69 ft	6 m	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug
Omron Electronics Inc-EMC Div XS3F-M421-410-A
Omron Electronics Inc-EMC Div XS3F-M8PVC4A2M	Female Sockets	All	Unshielded	Black	Wire Leads	Keyed	4			Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug Right Angle	2 m	6.56 ft
Omron Electronics Inc-EMC Div XS3F-M8PVC3S8M	Female Sockets	All	Unshielded	Black	Wire Leads	Keyed	3	26.2 '	8 m	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug
Omron Electronics Inc-EMC Div XS3F-M8PUR3S2M	Female Sockets	All	Unshielded	Black	Wire Leads	Keyed	3			Polyurethane (PUR)	Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug	2 m	6.56 ft
Omron Electronics Inc-EMC Div XS3F-M521-502-A
Omron Electronics Inc-EMC Div XS3F-E422-410-A	Female Sockets	All	Unshielded	Gray	Wire Leads	Keyed	4				Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug Right Angle
Omron Electronics Inc-EMC Div XS3F-M8PUR3A2M	Female Sockets	All	Unshielded	Black	Wire Leads	Keyed	3			Polyurethane (PUR)	Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug Right Angle	2 m	6.56 ft
Omron Electronics Inc-EMC Div XS3F-M321-305-A
Omron Electronics Inc-EMC Div XS3F-E421-402-A	Female Sockets	All	Unshielded	Gray	Wire Leads	Keyed	4				Industrial Environments	IP67 - Dust Tight Waterproof	Round	M8	Free Hanging (In-Line)	Standard	Plug	2 m	6.56 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.74

Description

General part information

XS3F Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
