GF-326-0000

Active

CW Industries

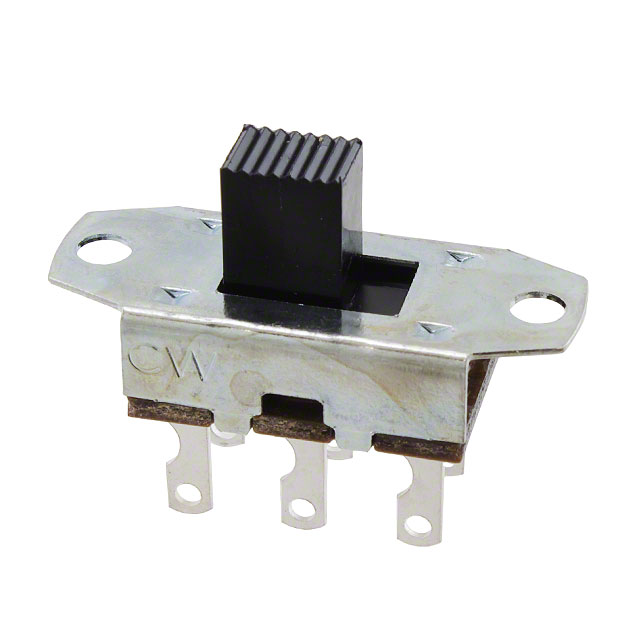

SWITCH SLIDE DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet GF-xx25/GFxx26

GF-326-0000

Active

CW Industries

SWITCH SLIDE DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet GF-xx25/GFxx26

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GF-326-0000

Actuator Length [x]	8.74 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	500 mA, 3 A
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On
Switch Travel	4.01 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

GF-326 Series

Part	Mounting Type	Contact Timing	Electrical Life	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Termination Style	Switch Travel	Contact Finish	Voltage Rating - DC	Mechanical Life	Contact Material	Voltage Rating - AC	Switch Function	Actuator Type	Current Rating (Amps)	Circuit	Actuator Length [z]
CW Industries GF-326-0127	Through Hole	Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	0.79 mm	PC Pin	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On (Line Voltage Selector)	Screwdriver Slot	3 A 500 mA	DPDT
CW Industries GF-326-0189		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C		Solder Lug	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Push-Pull	3 A 500 mA	DPDT	1.65 mm
CW Industries GF-326-0000		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	Solder Lug	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0193		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	PC Pin	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0217		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	Wire Wrap	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0149		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	0.79 mm	Solder Lug	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On (Line Voltage Selector)	Screwdriver Slot	3 A 500 mA	DPDT
CW Industries GF-326-0150		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	PC Pin	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0233		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	0.5 in	Solder Lug	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0285		Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	Solder Lug	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT
CW Industries GF-326-0012	Through Hole	Not Specified	6000 Cycles	Nylon 6/6 Polyamide (PA66)	104 °C	-10 °C	8.74 mm	PC Pin	4.01 mm	Silver	125 VDC	10000 Steps	Copper	125 V	On-On	Standard	3 A 500 mA	DPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.44
		10	$ 1.40
		25	$ 1.27
		100	$ 1.10
		250	$ 1.01

Description

General part information

GF-326 Series

Slide Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

GF-xx25/GFxx26
