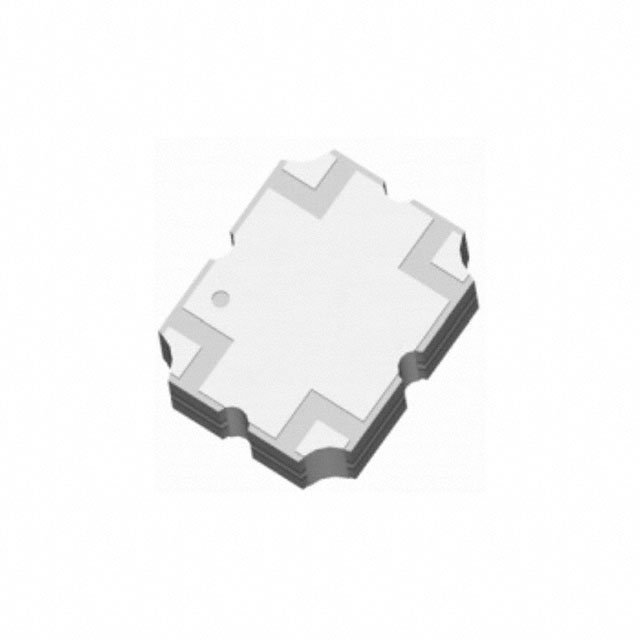

XC0900P-10S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 800MHZ-1GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC0900P-10S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 800MHZ-1GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC0900P-10S |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 1 GHz |
| Frequency [Min] | 800 MHz |
| Insertion Loss | 0.38 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 55 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.18 | |
| 10 | $ 3.62 | |||
| 25 | $ 3.42 | |||
| 100 | $ 3.15 | |||
| 250 | $ 2.98 | |||
| 500 | $ 2.87 | |||
| 1000 | $ 2.76 | |||
| Digi-Reel® | 1 | $ 4.18 | ||
| 10 | $ 3.62 | |||
| 25 | $ 3.42 | |||
| 100 | $ 3.15 | |||
| 250 | $ 2.98 | |||
| 500 | $ 2.87 | |||
| 1000 | $ 2.76 | |||
| Tape & Reel (TR) | 2000 | $ 2.13 | ||
Description
General part information
XC0900 Series
RF Directional Coupler General Purpose 800MHz ~ 1GHz 10dB 55W 4-SMD, No Lead
