09200160301ML

Active

HARTING Technology Group

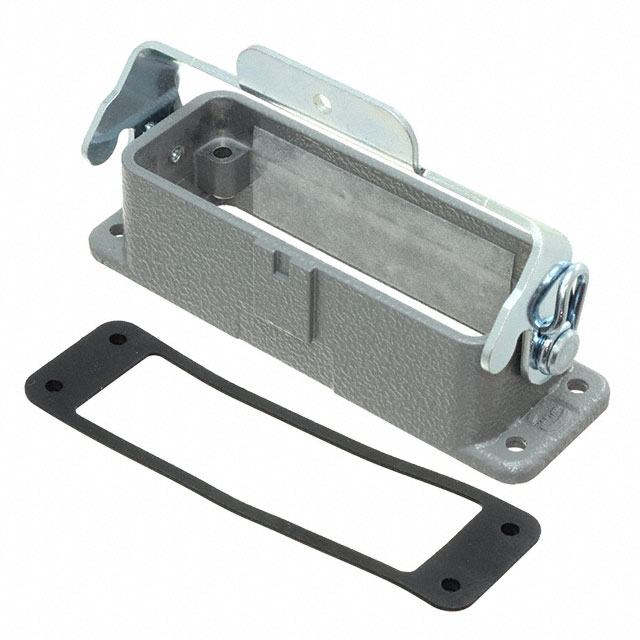

16A BULKHEAD HOUSING, SINGLE LEVER, W/ METAL LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

16A BULKHEAD HOUSING, SINGLE LEVER, W/ METAL LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	09200160301ML

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Size / Dimension [x]	96 mm
Size / Dimension [x]	3.78 "
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	26 mm
Size / Dimension [z]	1.024 in
Style	Bottom Entry

Part	Size	Housing Color	Housing Finish	Connector Type	Housing Material	Style	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09200160301ML	16 A	Gray	Powder Coated	Base - Panel Mount	Aluminum Die Cast	Bottom Entry	IP65 - Dust Tight Water Resistant	29.5 mm	96 mm	1.161 "	26 mm	3.78 "	1.024 in	Locking Clip (1) on Base Bottom	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 16A IP65 - Dust Tight, Water Resistant
