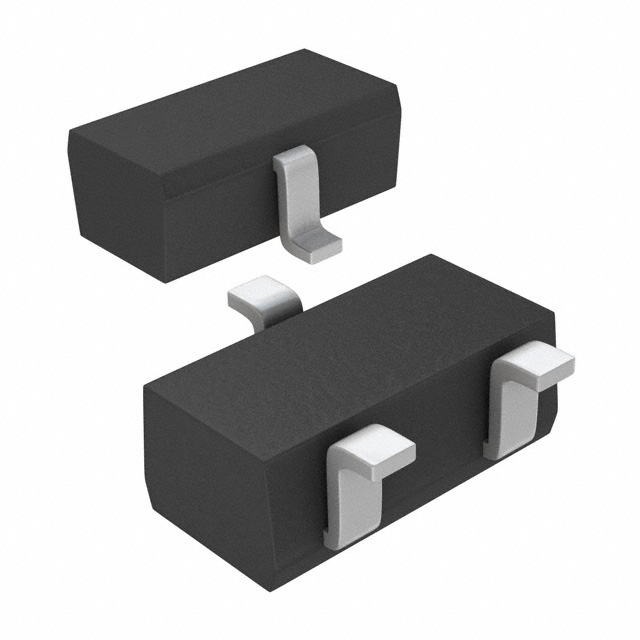

EW610B
ActiveAsahi Kasei Microdevices Corporation
MAGNETIC SWITCH LATCH SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EW610B
ActiveAsahi Kasei Microdevices Corporation
MAGNETIC SWITCH LATCH SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EW610B |
|---|---|
| Current - Output (Max) [Max] | 10 mA |
| Current - Supply (Max) [Max] | 6 mA |
| Function | Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Collector |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Polarization | South Pole |
| Sensing Range [Max] | 6 mT |
| Sensing Range [Min] | -6 mT |
| Supplier Device Package | SOT-23-3 |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 26.4 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.54 | |
| Digi-Reel® | 1 | $ 1.54 | ||
| Tape & Reel (TR) | 3000 | $ 0.75 | ||
Description
General part information
EW610 Series
Digital Switch Latch Open Collector Hall Effect SOT-23-3
