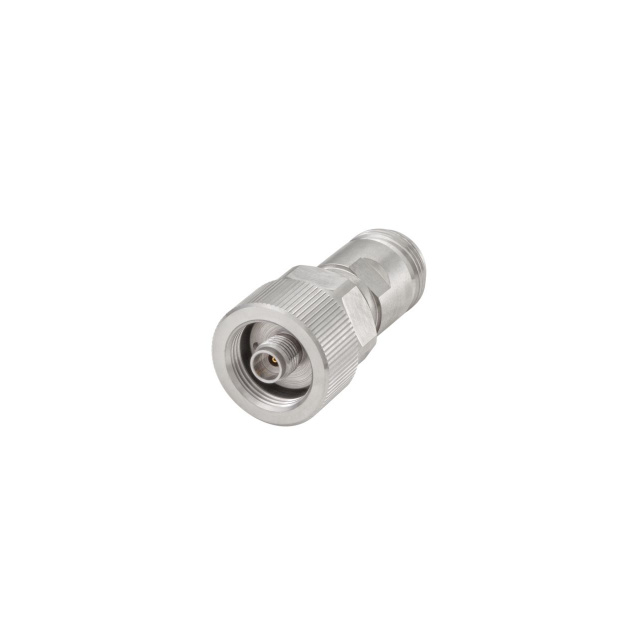

09KR105-K0AS3

Active

Rosenberger

PRECISION 2.40 TESTPORT ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.40 TESTPORT ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	09KR105-K0AS3

Adapter Series [Max]	RPC-N
Adapter Series [Min]	RPC-2.40
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	2.4 mm
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.21 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Convert From (Adapter End)	Adapter Type	Center Contact Material	Adapter Series [Max]	Adapter Series [Min]	Body Material	Center Contact Plating	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Mounting Type	Mating Cycles	Style	Conversion Type	Center Gender
Rosenberger 09KR105-S0AS3	2.4 mm	Plug to Jack	Beryllium Copper	RPC-N	RPC-2.40	Stainless Steel	Gold	0.21 dB	85 °C	-40 °C	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	Male Pin N Plug	Free Hanging (In-Line)	500	Straight	Between Series
Rosenberger 09KR105-K0AS3	2.4 mm	Jack to Jack	Beryllium Copper	RPC-N	RPC-2.40	Stainless Steel	Gold	0.21 dB	85 °C	-40 °C	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	Female Socket N Jack	Free Hanging (In-Line)	500	Straight	Between Series	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1302.51

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To N Jack, Female Socket 50 Ohms
