3020-50-0100-00
ActiveCnC Tech, LLC

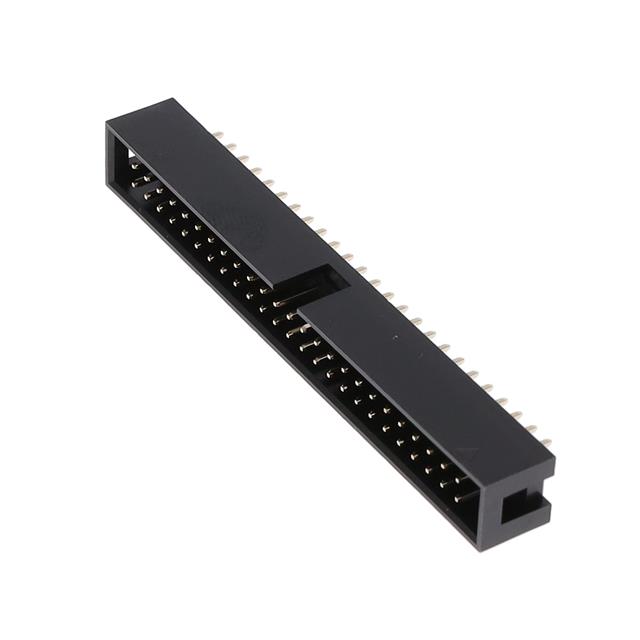

CONN HEADER VERT 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3020-50-0100-00
ActiveCnC Tech, LLC
CONN HEADER VERT 50POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3020-50-0100-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 9 mm |
| Insulation Height | 0.354 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
3020-50 Series
| Part | Termination | Material Flammability Rating | Contact Finish - Mating | Contact Shape | Connector Type | Features | Contact Finish Thickness - Post | Number of Positions | Shrouding | Insulation Height | Insulation Height | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Fastening Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Type | Contact Finish - Post | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Material | Current Rating (Amps) | Insulation Material | Number of Rows | Contact Length - Post | Contact Length - Post | Voltage Rating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Solder | UL94 V-0 | Gold | Square | Header | Keying Slot | Flash | 50 | Shrouded - 4 Wall | 9 mm | 0.354 in | Surface Mount | 2.54 mm | 0.1 in | Board to Cable/Wire | Push-Pull | All | -40 °C | 105 ░C | Black | Male Pin | Gold | Flash | 0.1 in | 2.54 mm | Brass | 3 A | Nylon 9T Polyamide (PA9T) | 2 | |||||
CnC Tech, LLC | Solder | UL94 V-0 | Gold | Square | Header | Keying Slot | Flash | 50 | Shrouded - 4 Wall | 9 mm | 0.354 in | Through Hole | 2.54 mm | 0.1 in | Board to Cable/Wire | Push-Pull | All | -40 °C | 105 ░C | Black | Male Pin | Gold | Flash | 0.1 in | 2.54 mm | Brass | 3 A | Nylon 9T Polyamide (PA9T) | 2 | 0.118 in | 3 mm | 250 VAC | ||
CnC Tech, LLC | Solder | UL94 V-0 | Gold | Square | Header | Keying Slot Pick and Place | Flash | 50 | Shrouded - 4 Wall | 9.1 mm | 0.358 in | Surface Mount | 2.54 mm | 0.1 in | Board to Cable/Wire | Push-Pull | All | -40 °C | 105 ░C | Black | Male Pin | Gold | 0.1 in | 2.54 mm | Copper Alloy | 3 A | Nylon 9T Polyamide (PA9T) | 2 | 250 VAC | |||||
CnC Tech, LLC | Solder | UL94 V-0 | Gold | Square | Header | Keying Slot | Flash | 50 | Shrouded - 4 Wall | Through Hole Right Angle | 2.54 mm | 0.1 in | Board to Cable/Wire | Push-Pull | All | -40 °C | 105 ░C | Black | Male Pin | Gold | Flash | 0.1 in | 2.54 mm | Brass | 3 A | Nylon 9T Polyamide (PA9T) | 2 | 0.118 in | 3 mm | 250 VAC | 0.346 in | 8.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.32 | |
| 10 | $ 2.02 | |||
| 360 | $ 1.63 | |||
| 720 | $ 1.50 | |||
| 1080 | $ 1.29 | |||
| 5040 | $ 1.14 | |||
Description
General part information
3020-50 Series
Connector Header Through Hole 50 position 0.100" (2.54mm)
